Huremu hunouraya mapurojekiti akawanda kupfuura bhajeti.
Masikirini akajeka anoyera3-12 kg/m²uye kumhanya kose10mm gobvu. Traditional screens ane makabati anoyera30-50 kg / m²uye kuyera50-150mm kudzika. Chivako chenhaka chine mahwindo epakutanga kazhinji hachikwanise kutsigira huremu hwe LED pasina kusimbiswa kwesimbi kunoparadza rondedzero yenhaka. Transparent screens inokwira yakananga pamukati megirazi nzvimbo isina basa rekuita. Kuiswa kunotora mazuva kwete mwedzi.
Cheni yezvitoro ine 500 magirazi ezvitoro zvakatenderedza zviratidziro zvinoonekera pane network yese pasina kubata zvivakwa zvekuvaka. Kuedza zvimwe chete nemasikirini echinyakare kunoda huinjiniya hwechivanhu panzvimbo yega yega-chikamu chepurojekiti chinouraya zvikumbiro zvakawanda zvisati zvasvika kubvumidzwa kwebhajeti yekupedzisira.
Zvatiri Kufananidza
Kwemakumi emakore, masikirini e LED aive kwese kwese-mabhodhi ezvibodzwa, zviratidzo zvezvitoro. Vakashanda zvakanaka: mavara akajeka, akarurama, akavimbika. Asi ivo vakauya netradeoff hapana aigona kuinjiniya kutenderedza: skrini yega yega yaive madziro. Chiedza chakavharwa, maonero akavharika, akatora nzvimbo.
Transparent LED inotenderedza iyo equation. Chikamu chakasiyana chechigadzirwa zvachose.

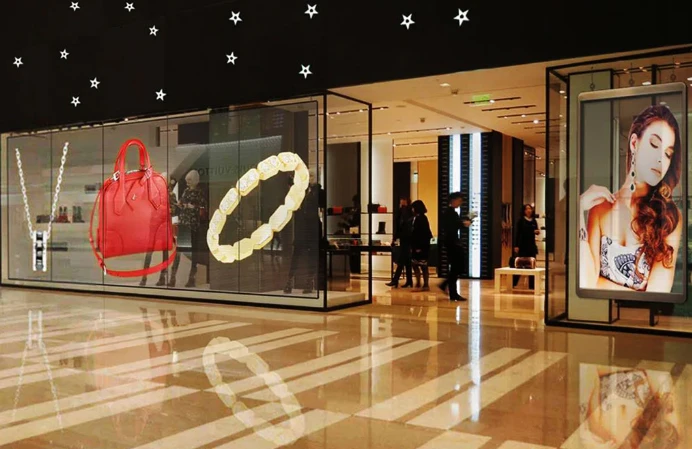

Iyo yekutengesa application ndiyo iri kufambisa yakawanda yekukura izvozvi. Mahwindo ezvitoro agara ari ekutanga real estate. Iwe unoda kuratidza zvigadzirwa uye kumhanya kushambadza panguva imwe chete. LED yechinyakare inomanikidza sarudzo-skirini kana hwindo. Transparent LED inobvisa iyo sarudzo zvachose. Vatengi vanoona zvekusimudzira uye zvinotengeswa panguva imwe chete. Nike neZara nzvimbo dzemureza dzakafunga izvi kare. Iyi kesi yekushandiswa imwechete inotsanangura kuti nei yakajeka LED yakatama kubva niche curiosity kuenda kune yakakomba yekutengeserana kufunga mukati memakore mashanu.
Mavakirwo Azvo
Masikirwo echinyakare anotungamira chinhu chimwe: kurovera mapixel akawanda sezvinobvira munzvimbo yakapihwa. Machipisi e LED{{1}kanaSMD (Surface Mount Device), COB (Chip paBhodhi), kana kuti mukuruDIP (Dual In-line Package)fomati-nairwa zvakasimba paPCB substrates. Mask nhema kana epoxy coating inovhara zvese kunyudza ambient mwenje uye kuwedzera musiyano.
Migumisiro inotaura pachayo. COB mapaneru anorova mutsauko reshiyo pamusoro20,000:1. Pixel pitches inoenda zvakanaka seP0.6mmye4K uye 8K kuratidza. Zvikwata zvekunze zvinosundidzira10,000 nits.
Asi echinyakare ma LED skrini anovhara 100% yechiedza ichipfuura nepakati pavo. Iwo madziro edhijitari. Yakanakira kukanganisa, inotyisa kune chero chinhu chaunoda kuona.

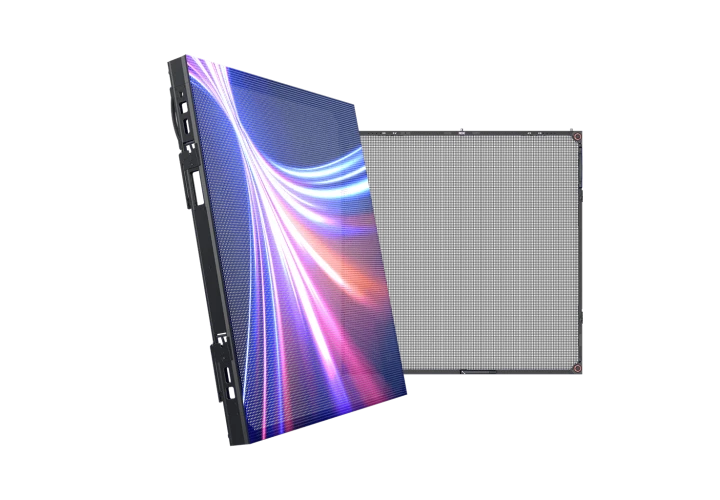

Masikirini akajeka anotangira kubva kumagumo. Panzvimbo pekuwedzera pixel kuverenga, iwo akagadzirirwa kutenderedza kutenderedza chiedza kuburikidza nekuchengeta mufananidzo unogamuchirwa. Nzira nhatu huru dziripo.Bvisa{{0}madhizainiisa machipisi e LED pane nhete dzealuminium kana PCB mitsetse ine mikaha pakati pawo-chiedza chinopfuura nepamaburi, chichirova 60-90% pachena zvichienderana nekuparadzana.Mafirimu-akavakirwa neshanduropinza mamicro-maLED muzvikamu zvitete zvikuru zvinoonekera (zvinoita 4mm gobvu, kurema 3-6 kg/m²) anonamira pagirazi riripo.Girazi-magadzirirwo akabatanidzwasandwich LED zvinhu pakati pemaviri magirazi akaturikidzana, achishandura girazi rekuvaka kuita nzvimbo yekuratidzira.
Mamwe magaka pakati pemitsetse zvinoreva kuti mwenje wakawanda unopinda, asi mashoma mapixels paskweya mita. Yese yakajeka skrini ndeyekuwirirana pakati pezvinhu zviviri izvi.

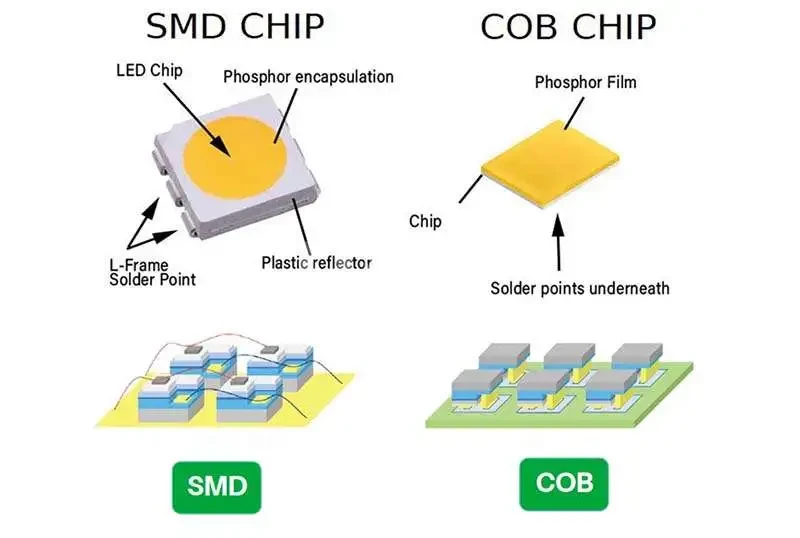

LED Packaging Types
SMD-Surface Mount Deviceyave iripo kwemakumi emakore. Machipisi ega ega mudzimba diki dzepurasitiki, dzakatengeswa paPCBs. Iyo tekinoroji yakatwasuka, inova ndiyo yakanakira yayo. Cheni dzekutengesa dzakakura, nyanzvi dzinoziva kushanda nayo, uye kana LED imwe chete ikafa inogona kuchinjwa pasina kutsiva iyo module yese. Iyi ndiyo tekinoroji yeLED yakanyatsopupurirwa uye yakavimbika: isiri yekucheka-kumucheto, inoshanda nguva dzose, inodhura-inoshanda kugadzirisa. Kusiyanisa kunogara kwakapoteredza1,200-1,800:1. Mazhinji mayunitsi anogara anenge50,000 maawakupenya kusati kwadonha zvinooneka. Kune chero chinhu P1.2 kana coarser, SMD inoramba iri yakasarudzika sarudzo nechikonzero chakanaka.
COBndipo panowanikwa zvinhu zvinonakidza-uye zvinodhura. Chip paBhodhi inosvetuka iyo yega yepurasitiki dzimba zvachose. Multiple LED machipisi anokwidzwa akananga pane substrate, obva afukidzwa nekamwe resin layer. Iyo mainjiniya inobatsira kudonha kubva ipapo: kupisa kunopera zvingangoita 3x zvirinani (hapana dzimba dzepurasitiki dzinoteya kudziya), musiyano unosvetuka kupfuura20,000:1(iyo yakabatana nzvimbo inotora ambient mwenje zvinobudirira), uye hupenyu hunoenderera mberi100,000 maawa. Ndiyo yega sarudzo inogoneka yeakanyanya-makwiriro aripasi peP1.0. The tradeoff: kana chimwe chinhu chikatadza, iyo module yese inoda kutsiviwa pa$200-300 pachiitiko. Uye mutengo wepamberi unokwira zvakanyanya. Tekinoroji inokodzera masitudiyo ekutepfenyura uye-nzvimbo dzepamusoro dzemakambani. Inomiririra mari yakawandisa yehotera yekutandarira.

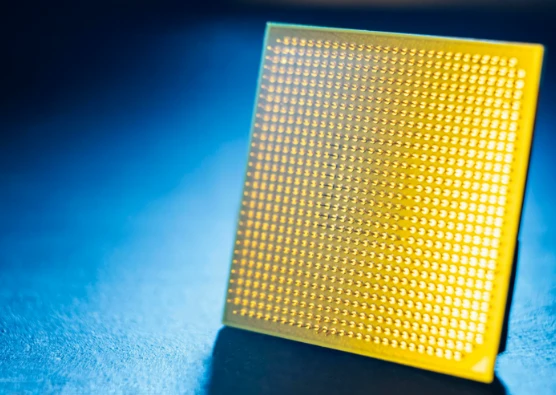

Zvadaro paneGOB-SMD ine jira rekudzivirira. Glue paBhodhi. Same yepasi petekinoroji, asi ine dhizaini yeglue yakavhara iyo LED pamusoro. Izvi zvinopa kusimba kuri nani kubva pakubata kwemuviri uye hunyoro uchichengeta kugadzirisa hupfumi hweSMD. Vamwe vanobatanidza vanoikurudzira zvakasimba kune-nzvimbo dzekutengesa dzetraffic dzakakwirira. Vamwe vanozviona zvisina kufanira kune mazhinji maapplication. Migumisiro inosiyana zvichienderana nemamiriro ekushandiswa chaiwo.
Masikirini mazhinji anoonekera anoshandisa akagadziridzwa mitsetse{{0}based SMD mounting kana specialized transparent substrates. Mamwe mhando dzemhando yepamusoro dzinoshandisa COB{{2}nzira dzakachena dzakasanganiswa.
Iwo Madiro Anonyanya Kukosha (Uye Iwo Asina)
Haasi ese ma specs anokodzera kutariswa zvakaenzana.
Transparency
Kujeka kunobva50% kusvika 95%pamasikirini akajeka zvichienderana nekugadziriswa. Traditional inogara pa 0%-ndizvo zvakakosha pamashandiro avanoita. Coarser pixel pitches zvinoreva mamwe magaba pakati pe LED mitsetse, mwenje wakawanda unopfuura. Sunda kuP9.26 uye uchapfuura 80% pachena, asi panguva iyoyo wakakodzera chete-kuona mahombe-mafacade ezvivakwa anoonekwa kubva mhiri kwemugwagwa.
Resolution
Resolution ndeyechinyakare LED yakajeka kuhwina. COB inoenda zvakanaka seP0.4. Yakajairwa SMD yechinyakare skrini pasi kunze kwakatenderedzaP1.0-P1.2. Transparent screens parizvino yakakura kunzeP2.6. Mazhinji maAV ekubatanidza anoshandisa chiverengero chekukurumidza: patsanura pixel pitch (mu mm) ne 0.3 kuti uwane hudiki hwekuona kureba kwemamita. Saka P3.9 yakajeka skrini inoda mamita gumi nematatu pixelation isati yanyangarika. Iyo P1.2 yechinyakare skrini inotaridzika yakapinza kubva pamamita mana chete kunze.
Kupenya
Yekushandisa mukati memba, yakajeka LED inowanzobuda800-2,500 nits. Traditional indoor screens inomhanya600-1,500 nits-saka pachena ine mupendero mukuseta kwakawanda. Zvitoro zvezvitoro zvinoda imwe punch: mafiritsi akajeka anowanzo mhanya4,000-5,500 nits. Chiedza chezuva ndipo pachiri kutonga-zvadzinosundidzira5,000-10,000 nitsnepo masikirini akajeka kuseri kwegirazi kurwira pasi pe6,000 nits.
Kusiyana uye Ruvara
Kusiyana uye ruvara-chinyakare maLED akanyanya pano, uye izvi hazvishanduke. Iyo dema mask dhizaini inotora ambient mwenje, ichigadzira yakadzika matema. COB tekinoroji inotumira lab-yakayerwa mutsauko uri pamusoro20,000:1. Iko kune zvechinyakare zviratidziro zvinoratidzira zvitema, zviratidziro zvinoonekera zvinoratidza chero chiri kumashure kwavo. Imba yemusangano, nzvimbo yekupaka, masikati machena. Hapana huinjiniya hunogadzirisa izvi-zvazviri kuita kuti chiedza chipfuure.
Chii Chauchabhadhara Chaizvo
Iyi mitengo yeFOB Shenzhen-mutengo wekumhara kuNorth America kana kuEurope unowedzera 15-25%. Mitengo inochinja; Mutengo we LED chip wakadzikira zvingangoita 12% pakati peQ1 neQ3 2024.
Transparent LED
Entry-level side-emitting panels anomhanya$580-950/m². Pakati-kumberi{2}}kunobudisa{3}panzvimbo zhinji dzekutengesa dzinosvika-pakugara$1,100-2,400/m². Transparent firimu LED inoenda$1,150-2,800/m². Holographic pachena inoratidza kusunda$1,400-3,200/m².
Traditional LED
Kunze SMD (P4-P10) ndiyo yakachipa pa$150-400/m². Indoor SMD (P1.5-P3) inomhanya$300-800/m². Fine-pitch COB (P0.9-P1.2) hits$1,000-2,500/m². Ultra-fine COB (P0.6 zvichidzika) inotangira pa$3,000+/m².
Installationye LED inoonekera kazhinji inoita $200-500/m²-yakatwasuka ichikwira pagirazi riripo. Kuiswa kwechinyakare kwe LED kunomhanya madhora mazana mashanu-2,000/m² kana iwe uchinge wafunga nezvezvimiro zvinodiwa. Apa ndipo panoonekwa huremu hwakasiyana hwataurwa pakutanga mubhajeti.
Mari yegore negore simbapakuisa 100m² kuita maawa gumi nemaviri zuva nezuva: ingangoita $3,000-4,500 yezvakajeka, $5,000-7,500 yechinyakare. Transparent screens inodhonza 30-40% shoma simba-mashoma e LED machipisi pa square mita, kutonhora kusingaite pachinzvimbo chekushanda mhepo.
Kugadzirwa kwezvinhuanowedzera mumwe musiyano vanhu vanokanganwa. Zviratidziro zvinoonekera zvinoda zvinhu zvakagadzirirwa kuti zvitarisike zviri pachena-nzvimbo nhema dzinoratidza pachena.
Installation uye Maintenance Reality
Transparent LED skrini inokwira yakananga pagirazi pamusoro pekushandisa inonamira, magineti masisitimu, kana mechanic clips. Hapana chimiro chesimbi kune akawanda maapplication. Nguva yakatarwa: mazuva kusvika kumavhiki.
Echinyakare LED skrini inoda yakatsaurirwa zvimiro zvekutsigira, uremu kurodha kuverenga, mhepo kuyera kuyera kwekunze, mvumo yekuvaka kazhinji. Nguva yakatarwa: mavhiki kusvika kumwedzi.
Maintenance inoshanda zvakasiyana zvakare. Transparent screens anoshandisa modular strip/panel replacement. Mapazi emagetsi akareruka zvakakwana kune imwe-technician service. Masikirini echinyakare eSMD anobvumira kuisirwa maLED ega ega asi anoda nyanzvi dzine hunyanzvi dzakanyatso soldering-$10-15 pachiitiko chimwe nechimwe. Masikirini echivanhu eCOB anoda kuchinjwa kwemodule-level pa$200-300+ pachiitiko chega chega, asi kukundikana kunoitika kashoma.
Ipo Imwe neimwe Yakakodzera
Mamwe mapurojekiti anowira pachena mumusasa mumwe.

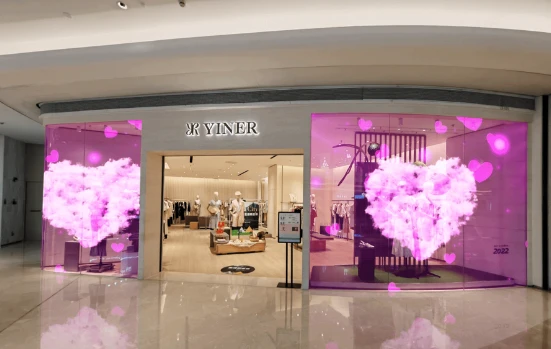

Transparent LED inokunda:Girazi keteni madziro zvivakwa uko facades inova midhiya pamusoro apo ichichengeta chivakwa chakasimba. Shopping mall atriums uye magirazi partitions. Mahoro ekuratidzira uye mamiziyamu akaturikidzana zvedhijitari pamusoro pezviratidziro zvemuviri. Motokari showrooms. Stage uye chiitiko kumashure uko vatambi vanoonekwa kuburikidza nezvikirini.
Traditional LED inokunda:Mabhodhi ekushambadza ekunze anoda kupenya kwakanyanya pasi pezuva rakananga. Nhandare inoratidzwa pa50+ metres apo yakanaka pixel pitch isina basa. Zvitudiyo zvekutepfenyura uye makamuri ekudzora uko kusingagoneki kwemavara-kusingataurwi. Concert main screens anofukidza mazana emaskweya metres. Zvifambiso zvehubhu ruzivo runoratidza uko kujeka hakuwedzeri chinhu.
Chipi?
Pane girazi rinobatanidzwa raunoda kuchengetedza here? Chiedza chechisikigo chakakosha here pamashandiro anoita nzvimbo? Chimiro chinogona kubata 30-50 kg/m²? Ndeipi chinhambwe chekutarisa? Iyo bhajeti inoda kuzvidavirira yeinjiniya yezvimiro?
Kuchikamu chiri kukura chemapurojekiti anosanganisira girazi rekuvaka uye mwenje wechisikigo, yakajeka LED yachinja kubva kune inonakidza imwe nzira kuenda kune default kufunga. Pane zvimwe zvese-zvibhodhi zvekunze, masitudiyo ekutepfenyura, zviratidziro zvenhandare-maLED echinyakare anoramba ari sezvaagara ari: zvinoonekwa, zvinopenya, zvinodhura-zvinoshanda, uye zvisinganyatsojeka.
