ESL Refresh Rates uye Display Performance

The Fundamental Constraint

Electronic Shelf Labels inoshanda pasi pekumanikidzwa kwemuviri zvekuti hapana huwandu hwekushambadzira hunogona kuvanza:electrophoretic particles inofamba kuburikidza ne viscous fluid, uye viscous fluid inoramba kufamba. Hapana software yekuvandudza ichagadzirisa izvi.

Kuvandudzwa kweESL-kazhinji300ms kusvika 2000mskuti igadziriswe zvizere-inobuda kubva panguva inodiwa kuchajiswa titanium dioxide necarbon black particles kuti zvifambe nemuhydrocarbon solvent pasi penzvimbo yemagetsi inoiswa. Zvimedu zvinosangana nemasimba ekudhonza (Stokes dhonza, kana iwe uchida tekinoroji temu, iyo masvomhu kuseri kwayo ine basa shoma pane inoshanda mhedzisiro: zvimedu zvinononoka mumvura yakakora). Ivo vanodyidzana electrostatic nevavakidzani zvimedu. Vanonamatira kumadziro e capsule mushure mekuzorora kwenguva refu.

Milisecond yega yega yenguva yekumutsiridza inoratidza chaiwo mamorekuru-zviitiko zvikero zviri kuitika mukati memamiriyoni emamicrocapsules panguva imwe chete. Avo vanouya kubva kuLCD kana OLED kumashure vanofanirwa kusiya iyo yepfungwa modhi zvachose. Aya haasi maratidziro e "scan" pixels ane maerekitironi. Aya ndiwo emagetsi masisitimu anotamisa zvinhu.

Kutyaira Waveforms: Iko Injiniya Inosangana neElectrochemistry

Thekutyaira waveformndipo panonyanya kutariswa kuedza kwekugadzirisa zvakanyanya. Ivoltage-kutevedzana kwenguva kunofanirwa kuita zvinangwa zvina panguva imwe chete: kudzima mufananidzo wapfuura, shandisa zvidimbu zvisina hunyoro, gadzira referensi greyscale, uye nyora mufananidzo mutsva-zvese uchideredza mashandisirwo emagetsi, ghosting artifacts, uye nguva yese yekuzorora.

Erasureanouya pakutanga. Chiratidziro chinotyaira ese pixels kune yunifomu optical state, kazhinji chena. Kuzvinetserei? Nekuti zvidimbu zveEPD zvinoratidza nzira-inotsamira maitiro. Kuchinja kwepixel kubva dema kuenda kune grey kunotevera imwe nzira yekuchinja kubva kuchena kuenda kune grey. Izvi zvakava pachena panguva yekutanga kutumirwa apo vatengi vakanyunyuta nezvekusaenderana kwegreyscale kupa. Erasure inomanikidza mapikseli ese kune imwe nzvimbo yekutanga, kubvisa kutsamira pamamiriro ekutanga.

Activationinotevera{{0}yakakwirira-frequency alternating voltage (±15V pa 50-100Hz) inotenderedza zvimedu pakati pekuona zvakanyanya. Iyi nzira inozunungusa zvidimbu zvakasununguka zvakagadzikana. Zvimedu zvakaramba zvakamira zvinokura kuwedzera kunamatira kumusoro kumadziro e capsule uye zvimedu zvakavakidzana. Kuedza kunoratidza nguva yakakwana yekugonesa nekuongorora inflection point yekupenya-maringe-nguva curve-nguva chaiyo apo kufamba kwechidimbu kunosvika pakudaira kukuru. Enda mapfupi uye ane usimbe zvimedu zvinosara kumashure. Enda nguva refu uye simba rinopera.

Zvino kunouyareference greyscale kugadzwa. Iyo inoratidzira inogadzira yunifomu chena referensi mamiriro nekuti EPD greyscale kurongeka kunoenderana zvakanyanya nekutanga kubva kune inozivikanwa optical baseline. Zvinokosha, kuisa zero pfupi-voltage interval mushure mechikamu ichi kunovandudza greyscale kuenderana kunotevera. Zvimedu zvinoda kanguva kuti zvigadzikane zvisati zvakumbirwa kurova chaiko nzvimbo dzepakati.

Pakupedzisira,mufananidzo kunyora. Pixel-specific voltages and durations drives particles to target positions. 16-level grayscale inoda kudzorwa chaiko kwekugovera kwakatwasuka mukati memicrocapsule-particles kumusoro kunoburitsa chena, kuzasi kunoburitsa nhema, uye nzvimbo dzepakati dzinoburitsa grey.

Kusundira Kuenda ku300ms

Inokurumidza sei ESL masisitimu anoenda chaizvo? Aggressive waveform optimization yakaratidza180ms kuderedzamu activation phase duration uye120ms kuderedzamukutarisa greyscale phase. Izvi zviwanikwa zvinouya kubva kune akati wandei matekiniki akakwenenzverwa pamusoro peakawanda kuendesa kutenderera.

Inflection point analysisinobvumira kutariswa kwe-nguva yemhinduro yekuona pane kushandisa nguva dzakatarwa.Polarity switching kuderedzazvine basa nekuti kudzosera voltage polarity kunoburitsa maspikes azvino uye kutambisa simba-kutevedzana kwemaitiro kuderedza shanduko idzi kunowedzera. UyeStrategic kuiswa kwe 0V intervalsinoshandisa particle speed, ichibvumira kuenderera mberi kwekufamba pasina kushandisa simba.

The theoretical yetioretical yezvino-generation EPD materials inoita kunge ingangoita200msyemhando inogamuchirwa yemufananidzo. Mamwe mapaneru akasundidzirwa ku180ms mumamiriro akadzorwa, asi kuderedzwa kwemhando kunova kucherechedzwa. Kupwanya ichi chipingamupinyi kunoda zvinhu zvitsva, kwete waveform kungwara.

Refresh Modes: The Speed-Quality-Ghosting Trilemma

Kumutsiridza kwese kweESL kunosanganisira nzira nhatu-dzisinganzvengeki. Hapana mainjiniya anogona kutiza; munhu anogona chete kusarudza zvibvumirano zvekugamuchira. Kuendesa ruzivo munzvimbo dzese dzegirosari, zvemagetsi, uye zvitoro zvemishonga zvakaburitsa mhedziso dzakasimba nezve nguva yekushandisa imwe neimwe modhi.

Global Refresh (GC16 Mode)

Uku ndiko kuseta patsva-750-2000msyevatema{{0}chena{1}}kupenya kutema kunomanikidza chimedu chega chega kuburikidza nekufamba kwakakwana. Zvinotaridzika zvinoshamisa, vatengi dzimwe nguva vanobvunza kana zvinyorwa zvisiri kushanda, asi ndiyo chete modhi inobvisa zvizere zvikanganiso zvakaunganidzwa.

Kufefetedza kwepasi rose kunodiwa mushure menguva dzakati rebei, kana uchiratidzira-mifananidzo yakatendeseka, kana kuti ghosting yave kusaonekwa. Imwe yegirosari yakatanga kuramba "yakashata kupenya" uye yakaedza kumhanyisa zvakanangana zvigadziriso. Vhiki nhatu gare gare, zvinyorwa zvavo zvekusimudzira zvakange zvisingaverengeki. Ivo zvino vanomhanyisa kuzorodza kwepasirese manheru ega ega panguva dzakavharwa.

Chikamu chekuvandudza

Chikamu chemutsidziro chinogadziridza chete mapikseli anosiyana pakati pemafuremu, achipedzisa mukati250-500ms. Nguva yakachengetwa yakakura-zviyero zvinotaridzwa70% kuderedza simbapazvinodzokororwa nemitengo-asi kutengeserana kuripo.

Mapikisi asina kuchinjwa haagamuchire magetsi ekutyaira. Zvimedu zvadzo zvishoma nezvishoma zvinogara mukugadzirisa kunowedzera kugadzikana. Yakagadzikana inonzwika zvakanaka kusvika munhu aona kugadzikana zvinoreva kusafamba. Mushure me5-10 chikamu chekuvandudza matenderedzwa, ghosting zvigadzirwa zvinoonekwa. Ichi chikumbaridzo chinosiyana nemugadziri; mamwe mapaneru anoshivirira 15 kutenderera, mamwe anoratidza matambudziko mushure me6. Iyo chete yakavimbika nzira inorangwa periodic global refresh interspersion.

Fast Refresh (DU Mode)

Direct Update modeinopira grayscale kugona zvachose. Pixel yega yega ibhinari-dema kana chena, hapana pakati. Izvi zvinogonesa120-250msinogadziridza nekamwe flash, asi mavara echeto anoita seakamisikidzwa uye mifananidzo haisi yemubvunzo.

Pamutengo-chete ESL maapplication anoratidza manhamba, DU modhi inowanzomiririra nzvimbo inotapira. Muedzo weparutivi-ne{3}}muchitoro chemagetsi chevatengi wakaratidza kuti vatengi havaikwanisa kusiyanisa DU-mitengo yakapihwa kubva kumitengo yakapihwa neGC16 pazvinhambwe zvenguva dzose. Kuchengetwa kwemagetsi kwakakosha.

A2 Animation Mode

At80-120ms, A2 mode inosvika pavhidhiyo-materesi ekuvandudza anokwanisa. Yakashandiswa kune zvigadzirwa demos uye inopindirana kiosk application.

Asi kusawirirana kwakanyanya. Ghosting inounganidza nokukurumidza. Kusiyanisa kunoderera. Ruzivo rwakanaka runonyangarika mushure memazuva mashoma. Mumwe mutengi aida zvekusimudzira zvine animated pasherufu -zvinogoneka neA2, asi kuderera kwemufananidzo mushure memasekondi 30 kwakaita kuti zvisashande. Iyi modhi iripo yekupinza peni uye pfupi kuratidzira, kwete kugadzira ESL kutumira.

Kusarudza Iyo Yakarurama Modhi

Nzira yekusarudza? Kutendeseka, mhando yemukati inowanzo kusarudzira iwe. Mifananidzo yemifananidzo inoda GC16; nhamba dzemutengo dzinogona kushandisa DU. Kuvandudzwa kwefrequency kunochinja chiyero-chisingawanzogadziriso chinofadza mhando, inogaro gadziridza inofarira kumhanya. Uye zvisinei nemhando yekutanga, kuzorodza kwepasirese kunofanirwa kuitika panguva dzakatsanangurwa. Iko hakuna kupukunyuka dambudziko rekuunganidza ghosting.

Ratidza Performance Parameters

Kusiyanisa Ratio

EPD mutsauko ratios kazhinji kubva8:1 kusvika 15:1, ine premium mapaneru anosvika20:1. Kufananidza neLCD zvinotsanangurwa (1000:1+) zvinorasisa.

EPD musiyano unoyerwa pasi pechiedza che ambient-mamiriro chaiwo apo vatengi vanoverenga masherufu mavara. LCD kusiyana kunodonha pasi pechiedza chepamusoro; EPD musiyano unovandudza. Zviyero zveESL zvekuverengeka munzvimbo dzezvitoro zvine 800+ mwenje wepamusoro wepamusoro unoratidza masikirini eLCD ari pedyo akasukwa zvachose.

Barcode scanners inoda kumwe kutenderedza6:1 musiyanokuverenga zvakavimbika{{0}takaedza izvi pamhando dzakawanda dzema scanner. Yese yekutengesa ESL yatakayera inobvisa bara iri nyore, zvinoreva kuti laser scanner inogona kuverenga mabarcode zvakananga kubva pamagetsi kuratidza pasina nyaya.

Resolution uye Pixel Density

ESL pixel density (100-150 DPI) inoratidza sarudzo yeinjiniya nemaune, kwete muganhu wetekinoroji. Kugadziridzwa kwepamusoro kunoda mapixels akawanda, imwe neimwe ichida kutyaira wega{1}}kuwedzera nguva yekuzorodza, mashandisirwo emagetsi, uye mutengo wechikamu.

Vamwe vatengi vakumbira 200+ DPI zviratidziro. Paakabvunzwa nezve chinhambwe chekuona, mhinduro yaigara iri pamusoro pe50cm. Pachinhambwe ichocho, 100 DPI inopa magwaro akakwana. Kupfuura{6}kutsanangura kugadzirisa kunoparadza zviwanikwa pasina pundutso inooneka.

Kugona Kwemavara

Mutema wese-uye-chena ESLinoramba iri bhiza rekushanda: kukurumidza kuzorodza (300ms), simba rakaderera, kuvimbika kwakanyanya. Inobata 90% yemitengo yekuratidzira maapplication zvinobudirira.

Zvina-masisitimu emavarauchishandisa E Ink Spectra 3100 tekinoroji inogonesa panguva imwe chete nhema/chena/tsvuku/yellow kuratidza. Inobatsira pamhando-yemhando yemhando yemutauro, asi nguva dzekuvandudza dzinowedzera.

-zvizere zvemavarakushandisa ACeP Gallery tekinoroji inogona kugadzira mifananidzo yemifananidzo. Iyo cyan-magenta-yero-white particle system inoyevedza zvechokwadi-mapikicha echigadzirwa anoratidzwa pamapanera aya anowanzofungidzirwa kuti akadhindwa. Asi1500ms+ nguva yekuzorodzauye mitengo yakakwira zvakanyanya inodzikamisa application kumakesi ekushandisa eprimiyamu apo maitiro ekuona anopembedza mutengo.

Kana zvasvika kune ruvara, mubvunzo unogara uri wekuti iyo yekuwedzera ruzivo kukosha inopembedza kurova kuzorodza nguva, simba, uye mutengo weyuniti. Zvipfumbamwe kubva pagumi, monochrome inoita basa.

Ghosting: The Persistent Artifact

Ghosting hachisi chirema chingabviswa. Icho chimiro chemukati che electrophoretic tekinoroji inoda manejimendi.Chero ani anovimbisa chipoko{{0}yemahara EPD kuita kungave kumiririra zvisirizvo tekinoroji kana kutengesa mapaneru anovandudza zvishoma nezvishoma kuviga dambudziko.

Kunobva Ghosting

Nzira nhatu dzinobatsira.Kutama kwe particle kusina kukwana-zvimedu zvatadza kusvika panzvimbo yaaida nekuda kwekusakwana kwenguva yekutyaira kana simba remagetsi.Residual charge distribution{{0}kuunganirwa kwechaji isina kuenzana pamadziro ecapsule zvichikanganisa kufamba kunotevera. Uyeparticle adhesion hysteresis{{0}zvimedu zvaramba zvakamira zvichiwedzera kunamira kwepamusoro.

Nguva yakawanda yakashandiswa kuratidza ghosting maitiro kune akasiyana mapaneru vanogadzira. Kusiyana kwakakosha; mamwe mapaneru ghost zvinooneka mushure me5 chikamu chekuvandudza asi vamwe vachishivirira 12-15.

Zvinhu Zvakatipoteredza Zvinoita Kuti Zvinyanye Kuipa

Tembirichazvinhu zvikuru. Solvent viscosity inowedzera pane tembiricha yakaderera, ichikanganisa kufamba kwechikamu uye kuwedzera ghosting. Pazasi pegumi dhigirii, nguva dzekuzorodza dzinoda kuwedzerwa kana zvinhu zvinooneka zvinofanirwa kugamuchirwa. Pazasi pe0 dhigirii , mapaneru anonetsa-zviratidziro zvisingaverengeki zvakaonekwa mumakesi efiriji pachishandiswa mapaneru asina kuverengerwa kutonhora.

Battery voltagezvinokanganisa zvipoko zvakare. Mabhatiri akapera anoendesa yakadzikira magetsi ekutyaira, zvichikonzera kusakwana kwechikamu chekufamba. Mumwe mutengi wemufemesi akasangana nematambudziko asinganzwisisike echipoko akazove mabhatiri ekutadza muboka remazita. Masisitimu eESL anofanirwa kuita -kuonekwa kwebhatiri rine chenjedzo dzekutanga kugadzirisa.

Mutsiridza nhoroondoinosanganisa zvese. Pixel inodzokorodza kuratidza izvo zvakafanana izvo zvinokura zvinoramba zvichienderera particle masisitimu. Static content ghosts nekukurumidza kupfuura dynamic content-counterintuitive kutozosvikira mabatiro ekunamira anzwisiswa.

Kutarisira Ghosting Mukuita

Periodic global refreshkunoramba kuri kudzikisira kwekutanga. Kurudziro inosungirwa kuti izere-screen refresh after every 5-10 partial updates, kunyange hazvo nguva yakakwana ichisiyana nepanera uye mashandisirwo ezvinhu.

Tembiricha-yakatsiva matafura ekutarisarubatsiro munzvimbo dzakasiyana. Kutyaira maparamendi akachengetwa muLUTs akarongedzerwa nekushisa otomatiki anowedzera waveform nguva pakudziya kwakaderera. Miyero inoratidza40% kuderedza ghostkushandisa zvakanaka{{0}muripo wetembiricha yakarongeka maringe nemaitiro akaiswa.

Historical furemu muripoine hudzamu hwepamusoro-inogadzirisa mafungu ekufambisa azvino zvichibva papixel{1}}level refresh history kutsiva zvakaunganidzwa zvakarerekera. Havasi vese ESL controller vanotsigira izvi, asi zvinoita mutsauko unoyerwa pamapanera anga ari mubasa kwemwedzi.

Content designzvine basa zvakare. Mavara machena ane mavara matema anoburitsa mweya isingaonekwe pane inverse color scheme. ESL matemplate anofanirwa kugadzirwa aine ghosting maitiro mundangariro-kudzivisa nzvimbo dzakakura dzakasimba nhema dzinoita chipoko zviripachena, sarudza machena.

Sistimu-Level Refresh Performance

Yega ESL yekuzorodza nguva inongova chikamu chimwe chete chekugadzirisa system latency. Zvekutumirwa nezviuru zvemavara, network yekuvaka inotonga yakazara nguva yekuvandudza. Vamwe vatengi vanotarisisa pamusoro pe50ms pani yekuzorodza kuvandudzwa uku vachifuratira mabhodhoro etiweki anowedzera masekondi makumi matatu kune yavo yekuvandudza.

Kukurukurirana Protocols

Proprietary sub-1GHz RF masisitimukupa yakanyanya kufukidzwa nzvimbo uye chivako kupinda. Gedhi-ku-kutara kutaurirana kunopfuura mamita makumi maviri nemashanu, izvo zvinokosha munzvimbo huru-dzezvitoro. Bandwidth miganho inomanikidza panguva imwe chete yekuvandudza chiyero, asi kune akajairwa ekutengesa ekugadzirisa mapatani izvi hazviwanzo kuve iyo bhodhoro.

Bluetooth Low Energy ine PAwR(Periodic Advertising with Responses, yakawedzerwa muBLE 5.4) inogonesa yakamisikidzwa bidirectional kutaurirana nehukuru hwechishandiso kuverenga. Nzvimbo imwe chete yekuwana inogona kugadzirisa32,640 zvinyorwa-128 mapoka anopeta 255 mavara paboka. Iyo periodic advertising interval inosarudza system latency; mapfupi nguva dzinopa mhinduro nekukurumidza pamutengo wemagetsi wepamusoro. Masisitimu eBLE akaiswa ne1-second intervals kune-nguva-sensitive application uye gumi-second intervals yenguva dzose yemitengo yekuvandudza.

Network topologyinotevera nyeredzi ine magedhi epakati. Gedhi rimwe nerimwe rinovhara nzvimbo yakatsanangurwa; kuvharika kwekuvhara kunovimbisa redundancy. Kutumirwa kwezvitoro kwakakura kunoda kungwarira kuronga chiteshi cheRF{2}kutumirwa kumwe chete uko magedhi maviri pamatanho ari pedyo akagadzira kuvhiringika kwakonzera 15% kurasikirwa kwepaketi.

Real-World throughput

Mukugadzira masisitimu,3,000 label inogadziridza mumaminetsi mashanukuburikidza negedhi rimwe chete rinogoneka nguva dzose. Pedzisa-ku-kugumisa latency kubva pa server command kuratidza kumhanya kwekupedza3-10 masekondizvichienderana nekuremerwa kwetiweki uye edza zvakare zvinodiwa.

Muono unokosha kubva kuruzivo rwekufambiswa kwemabasa: kumamiriro ezvinhu ekare ezvitoro apo kuchinja kwemitengo kunopararira kusvika kuzviuru zvemalebula, sisitimu-level performance network inomanikidza nguva yese yekuvandudza pane kumhanyisa label refresh. Kugadzirisa mitengo yekuzorodza yega pazasi 500ms inopa kudzikira kudzoka kana network kuparadzira kunoda masekonzi.

Kushandisa Simba uye Hupenyu hweBattery

EPD simba rekushandisa rinoitika kanenge panguva yekuzorodza zviitiko. Standby current haina basa-microamperes akayerwa. Iyi mbiri inogonesamakore mazhinji-hupenyu hwebhatirikubva mumaseru emari, inosara imwe yenhaurirano dzakasimba dzeEPD{{0}based ESL.

Chinopedza Simba

Pixel countine hukama hwemutsara-zviratidziro zvakakura zvinoshandisa zvakaenzanirana.Grayscale kudzikazvine basa nekuti 16-level GC16 inoda mamwe mafungu akaomesesa kupfuura binary DU modhi.Refresh mode sarudzoine simba guru; kuzorodza kwepasirese kunodya 2-3 × simba rekuzorodza zvishoma. Uyetembirichainokanganisa kudhirowa kwemagetsi nekuti nzvimbo dzinotonhora dzinoda mafungu akareba.

Upenyu Hwebhatiri Mukuita

ForCR2450 lithium mari maseroneinenge 600mAh kugona, yakacherechedzwa kuita kwakafanana:

Aya mafungidziro anotora tembiricha yekamuri. Zvishandiso zvinotonhora zvekuchengetedza-zvikamu zvefiriji nechando-zvinoita kuti bhatiri ripere kubva pakuwedzera simba rekuvandudza uye kuderedza bhatiri pakudziya kwakaderera. Chiratidzo chakatemerwa makore mashanu patembiricha yemumba chinogona kugara makore maviri mukesi yefiriji.

Kuzorodza kwese kunopedza kukwana kwebhatiri. Mumwe mutengi aida kusimudzirwa kwemitengo nguva dzose-mabhatiri aiita mavhiki matatu. Vagadziri veSisitimu vanofanirwa kutsanangura zvinodikanwa frequency kusati kwasarudzwa Hardware. Label inoda kugadziridzwa kweawa inoda akasiyana bhatiri ekuvaka pane imwe inogadziridzwa zuva nezuva.

Tembiricha Migumisiro Pakuita

Tembiricha inopesvedzera kuita kweESL kuburikidza nemaitiro akawanda, ichiiita iyoimwechete yakakosha shanduko yezvakatipoteredza. Izvi zvakaratidzwa kakawanda munzvimbo dzakatumirwa munzvimbo-zvinodzorwa pasi rezvitoro, makesi ane firiji, zvikamu zvekudya zvakaomeswa nechando, uye maapplication ekunze.

Solvent Viscosity

Izvi zvinopinda mune imwe chemistry, asi iyo pfupi vhezheni: EPD solvent inowedzera kana kutonhora. Hukama hunenge hunoteveraArrhenius curve-pasina kudzika zvakanyanya mu thermodynamics, chakakosha ndechekuti mhedzisiro yacho ndeye exponential, kwete mutsara.

At25 degree(referensi mamiriro), zvimedu zvinoratidza kufamba kwemazita. At0 degree, viscosity inopeta kaviri, nepakati chidimbu chevelocity. At-20 degree, viscosity inowedzera ingangoita 4 ×, inoda zvakaenzanirana yakawedzerwa waveform durations. Masvomhu anofanotaura izvi nemazvo, kunyange hazvo{2}}mibairo yepasi rose dzimwe nguva ichisiyana zvichienderana nemagadzirirwo anoshandiswa nemugadziri wega wega.

Kuedzwa kwemugadziri we "wide tembiricha" zvichemo nekumhanyisa mapaneru avo pa -15 dhigirii yakaratidza nguva yekuzorodza yakawedzerwa kubva pa400ms kusvika 1100ms. Iwo mapaneru akashanda, asi zvakatemwa zvairatidza kutonhora kwakanyanya kuita.

Operating Range Classifications

Standard panelskufukidza 0 dhigirii kusvika 40 dhigirii nekutanga kuita.Extended range panelsbata -10 dhigirii kusvika 50 dhigirii ine mwero waveform muripo.Wide tembiricha panels-inodiwa pamakesi echando{1}}inoshanda kubva -25 dhigirii kusvika 60 madhigirii uchishandisa specialized front-plane laminate materials, integrated tembiricha sensing, uye adaptive waveform sarudzo. Chokwadifreezer-giredhi mapanerayakagadzirirwa -30 dhigirii kusvika 10 dhigirii iripo asi raira mitengo yeprimiyamu.

Tembiricha Muripo

Yakakura-tembiricha ESL inosanganisa-masensa etembiricha echip, maseti eparameta akawanda akachengetwa mundangariro, uye otomatiki maparameta anoenderana nekuyerwa tembiricha. Yakawedzerwa nguva yemasaisai ekushanda kunotonhora uye kudzikiswa kwemagetsi ekushanda kwepamusoro-kupisa.

Chirango chekushanda kwe-tembiricha yekushanda kwakakura hachisi chinhu-chidiki. Zviyero zvinoratidza nguva dzekuzorodza pakupisa kwakanyanya kunomhanyakaviri kusvika katatumukamuri-kuita tembiricha. Vatengi vanoisa munzvimbo dzefiriji vanofanirwa kuisa izvi mukuverenga kwavo nguva yekuvandudza.

Iko ESL Zvinodiwa Diverge CHIKAMU CHITSVA

Izvo zvakajairika zve "retail ESL" zvinobata pamwe 60% chaiyo-yakatumirwa pasi rose. Iwo asara makumi mana muzana anosanganisira hunyanzvi zvinodiwa zvinobuda chete kana uchiongorora misika chaiyo yakamira. Izvo zvinoshanda muchitoro chemagetsi evatengi chinotadza zvinoshamisa mudura rekudya rakaomeswa nechando. Zvikamu zvinotevera zvinyorwa zvekutumira zviitiko mumaindasitiri uko zvakajairwa ESL fungidziro dzinoputsika.

Chikafu Chitsva uye Zvekudya: Dynamic Pricing Inosangana Inoparara Inventory

Chikafu chitsva chekutengesa chinomiririra iyo inonyanya kudiwa ESL application nechikonzero chakareruka: kukosha kwechigadzirwa kunodzikisira kunoramba kuchiratidzwa. Nyama yenyama inodhura $15/lb musi weMuvhuro mangwanani inogona kukosha $7/lb neChitatu manheru kana isati yatengeswa. Mapepa echinyakare haakwanise kutora iyi kukosha curve. ESL inogona-asi zvinodiwa zvekushandisa zvinosiyana zvakanyanya kubva pamitengo yegrocery.

Dynamic markdown mitengoinoda update frequencies iyo yaizopedza standard ESL mabhatiri mukati memwedzi. Dhipatimendi rezvekudya rinenge richishandisa zvigadziriso zvemitengo ina zuva nezuva{{1}mangwanani, gadziriso yemasikati, kudzika kwemanheru, kuseta patsva-rinopedza bhatiri ne 4× mutengo wepakati-chitoro chezvitoro chinovandudzwa kamwe chete pasvondo. Sarudzo yekemikari yebhatiri inochinja kubva pachiyero cheCR2450 maseru emari kuenda kupamusoro-unokwanisa masero elithium thionyl chloride kana zvimwe zvinochajwa zvine zviteshi zvekuchajisa zvakavakwa mumasherufu.

Zuva rekupera kushandainowedzera ruzivo density zvinodiwa. Mutengo wakareruka unoda zvimwe mavara makumi mashanu. Mutengo mutsva wezvekudya unoratidza mutengo, mutengo weyuniti, zuva rekurongedzerwa, kutengeswa-nemazuva, uye kushandiswa-nemazuva kunoda mabhii 150+ pasaizi yefonti inoverengwa. Ratidza real estate inowedzera zvinoenderana-2.9" uye 4.2" mavara anove akajairwa apo 2.13" inokwana chitoro chepakati.

Dhipatimendi reimwe girosari rekudya kwegungwa rakaisa 4.2" matatu-ruvara ESL ine Integrated NFC yevatengi vesmartphone. Ruvara rutsvuku runoratidza zvinhu zvave kuda kutengeswa-nemazuva ane otomatiki mitengo yekudzikisira: 15% kubva pamaawa 48 asara, 30% pamaawa 20 ekupedzisira, 24 maawa ekupedzisira. chaiyo-nguva yekubatanidza manejimendi ehurongwa hwezvinhu{12}}ESL yakava chikamu chehurongwa hwekudzikisa mitengo pane kungodzikiswa kwemitengo ne23% mudhipatimendi rekuyedza rakabhadhara basa rese mumwedzi minomwe.

Cold kesi environmentssuma matambudziko etembiricha ambotaurwa. Dairy inotonhorera inomhanya pa4 dhigirii inokonzeresa inocherekedza kuzorora zvishoma. Mhosva dzenyama pa2℃dzakaipa. Makesi echikafu akaomeswa nechando pa-18 madhigirii anoda mapeneru akakura-tembiricha anodhura 40-60% kupfuura mayunitsi akajairwa. Mumwe mutengesi wechikafu akaomeswa nechando akatanga akaisa mapaneru akajairika muchikamu chavo cheaizikirimu; iwo mavara akave asingaverengeki mukati mevhiki sezvo ghosting yakaunganidzwa kubva pakusakwana kuzorodza pakupisa kwekushanda.

Iyo tembiricha gradient mukati mefiriji makesi inogadzira kuwedzera kuoma. Maketeni emhepo anogadzira kusiyana kwetembiricha ye8-12 madhigirii pakati pemberi (inodziya, padhuze nemusanganiswa wemhepo) nekumashure (kunotonhora, pedyo neevaporator). Mavara kumberi kwekesi yemukaka anogona kushanda pa8℃asi mavara kumashure anoshanda ne2℃-akasiyana zvekuti anoda akasiyana waveform timing. Sophisticated deployments inoshandisa per-label tembiricha inonzwa ine yakasarudzika ma paramita ekuzorodza.

Inoparara inventory trackingkubatanidzwa kunomiririra shanduko inotevera. Kana ESL masisitimu akabatana bidirectionally neinventory manejimendi, iyo label inova sensor pamwe nekuratidzira. -kuonekwa kunze-kuona kana sherufu isina chinhu zvichienderana nekushaikwa kwezviitwa zvekutengesa{4}}zvinogonesa ziviso yezvezve otomatiki. Rimwe dhipatimendi rinogadzira zvinhu rakadzikisa-zve-zviitiko zvezvitoro ne34% vachishandisa ESL-yakabatana yekuongorora zvinhu iyo yakaratidza zvinzvimbo zvisina basa rekutengesa kweinopfuura maawa mana panguva dzepamusoro.

Warehouse uye Industrial Logistics: Scale Inochinja Zvese

Indasitiri warehouse ESL deployments inoshanda pasi pezvipingamupinyi izvo zvekutengesa system vagadziri havawanzo kusangana. Chitoro chegirosari chinogona kunge chine 15,000 SKUs kumativi makumi mana,000 masikweya tsoka. Nzvimbo yekugovera girosari ine makumi mashanu,000+ maSKU akayambuka 500,000 masikweya mafiti ane sirin'i yakareba mamita makumi mana. Mamodheru ekuparadzira eRF anoshanda munzvimbo yezvitoro gumi nemaviri{{13}netsoka-sirin'i anokundikana zvachose muimba yekuchengetera zvinhu ine simbi inorovera kusvika pamakumbo makumi matatu nemashanu.

Bin identification yenzvimboinoda zvakasiyana-siyana zvekutanga pane zvekutengesa mutengo tags. Ruzivo rwakanyanya hausi mutengo{1}ndiro kodhi yenzvimbo, SKU, uye huwandu. Matemplate eWarehouse ESL anowanzo ratidza zviziviso zvenzvimbo mu48-poindi kana mafonti akakura anoverengwa kubva pamamita 3+, zvichiita kuti vafambisi veforklift uye vanotora{7}}vapekura vashandi kuti vaone nzvimbo vasingaswedere bhini. Zvinodiwa zvetishiyo zvinoomeswa nekuti kuona kunoitika pasi pechiedza cheindasitiri chakasiyana-mimwe mikoto iri pasi pezvigadziriso zvepamusoro-soro pa1500+ lux, zvimwe mumumvuri pa200 lux.

Sarudza-ku-kubatanidzwa kwakarerukainotambanudzira ESL kupfuura kungoita ratidziro kuita inoshanda yekufambisa kutungamira. Zviratidzo zve LED zvakabatanidzwa ne-mapepa anoratidza flash kutungamira vashandi kuti vasarudze nzvimbo. EPD inoratidza zvekusarudza; iyo LED inoratidza pekusarudza. Masisitimu akasanganiswa anoderedza mitengo yekukanganisa kubva pa0.5-1% inodzika kusvika pa0.1% kana zvirinani. Kuchinja kwebhajeti yemagetsi-Chiratidzo cheLED panguva yekunhonga chinopedza simba rakawanda kudarika e{10}kutenderera kwepepa rekuvandudza. Mabhatiri ekuvaka anochinja zvinoenderana, anowanzo kutamira kune AA lithium maseru kana wired simba kune yakakwirira-chiitiko nzvimbo.

Nzvimbo dzepamusoro-dzekurekerakushushikana RF kutaurirana masisitimu. Metal racking inogadzira kukanganisa kwakawanda. Tall aisles dzinogadzira mumvuri nzvimbo. Gedhi rimwechete rinovhara mamita makumi maviri neshanu muzvitoro rinogona kungovhara 8-10 metres chete munzvimbo ine dura remba. Gedhi density inowedzera 3-4 × zvichienzaniswa nekutengesa kutumirwa kune yakaenzana kufukidzwa. Mamwe matura ekuisa anomhanyisa hybrid network-sub-1GHz yekupinda munzvimbo dzakaomesesa rack, WiFi yenzvimbo dzakavhurika dzekutandarira, ine yepakati inobatanidza iyo yekutaurirana layer.

Forklift{0}}yakaiswa zviratidziro zvenhareinomiririra iri kubuda yekuchengetera ESL musiyano. Panzvimbo pezvinyorwa zvemasherufu akamisikidzwa, zviratidziro zvinokwidziridzwa pamaforklift mast uye zvinogamuchira{1}}zvaichoizvo zvekunhonga mirairo apo vashandisi vanofamba mudura. Midziyo iyi inogadziridza nguva dzose-nzvimbo, uwandu, nzvimbo inotevera{4}}inoda zvivakwa zvemagetsi zvakasiyana zvachose kubva kumasherufu akamira. Hardwired simba kubva kune forklift yemagetsi system ndeyeyero; bhatiri harisi kushanda kune-zvinatsiridzwa zvisingaperi.

Inventory count otomatikiinosimudzira bidirectional ESL kutaurirana. Kubatanidzwa kweRFID kunoita kuti otomatiki kuverenga kutenderera{1}}zvinhu zvakaiswa RFID pass pedyo neESL mayunitsi ane RFID kuverenga, uye inventory counting inovandudzwa pasina manual scanning. Kutumirwa kwenzvimbo yekugovera kwakaderedza huwandu hwehuwandu hwehuwandu hwevashandi ne60% vachishandisa ESL-yakabatanidzwa RFID kutenderera kuverenga kwairamba kuine huchokwadi hwezvinhu zviri pamusoro pe99%.

Harsh environment ratingsnyaya mumaindasitiri. IP54 guruva uye splash kuramba ndiyo yekutanga yekuchengetera ESL; IP65 inova yakakosha munzvimbo dzine washdown yekuchenesa maitiro. Kemikari inopokana inobata zvinhu munzvimbo dzinobata zvinonyungudutsa kana kuchenesa mishonga. Imwe imba yekuchengetera mota yaida mavara asingaite mabhureki fluid uye kuratidzwa kwemvura yekufambisa-yakajairwa ESL dzimba dzakaderedzwa mukati memwedzi. Dzimba dzakakomberedzwa dzine makemikari-dzisingachinji epolycarbonate dzimba dzakawedzera 35% kumutengo wemayuniti asi zvakaratidza kuti zvakakosha kuti vanhu vararame kwenguva refu.

Hutano uye Pharmacy: Huchokwadi Hahutaurike-Hahutaurike

Pharmacy ESL deployments inotarisana nezvinodiwa zvekutonga zvisipo kubva kune zvakajairika zvitoro. Kukanganisa kwemitengo muchitoro kunoreva kunyunyuta kwevatengi uye kuratidzwa zviri pamutemo pasi pemitemo yehuchokwadi hwemitengo. Chikanganiso chekunyora mushonga muchitoro chemishonga chinogona kureva kukuvadzwa kwemurwere kana kufa. Nhoroondo yenjodzi inoshandura zvakanyanya dhizaini yehurongwa.

Chiratidzo chezvinodhakainoda ruzivo rwehuwandu kupfuura yakajairika yekutengesa ESL. Sherufu yesherufu yemushonga inofanira kuratidza: zita remushonga (brand negeneric), simba, fomu yedosi, nhamba yeNDC, mutengo, mutengo weyuniti, mugadziri, uye kazhinji zvinodiwa zvekuchengetedza. Kuisa izvi pa2.13" label kunoda kungwarira kutaipa-kana zvakanyanya, kuiswa kwe 2.9" kana zviratidziro zvakakura. Mamwe ma pharmacy anoshandisa 4.2 ″ mavara ane QR macode anobatanidza kupedzisa kutsanangura ruzivo.

Barcode chokwadi chechokwadianova anotsoropodza. Vashandi vepa pharmacy vanoongorora mishonga kakawanda panguva yekupa mafambisirwo ebasa-kugamuchira, kuisa pasherufu, kudhonza, kuongorora, kupa. Iyo ESL-bhakodhi yataridzwa inofanirwa kutariswa nemazvo padanho rega rega. Izvi zvinosimbisa kusiyana kwereshiyo zvinodiwa kupfuura zvekutengesa zvishoma. Kuongororwa pamichina yekuongorora mishonga kunoratidza kuti zvikena zvekuongorora zvemufemesi zvekare-vamwe vachiri kushandisa michina yeCCD kwete yemazuva ano yelaser kana imaging scanner-inoda 10:1 kana musiyano uri nani pakuverenga kwakavimbika. Sarudzo yepaneru inofanirwa kukonzeresa{11}}nyaya yemidziyo yekuongorora yakaipisisa mubhesi yakaiswa.

Nzvimbo dzezvinhu zvinodzorwasuma kuchengetedzwa kwemuviri zvinodiwa. Schedule II-V mishonga inoda chengetedzo yakachengetedzwa ine matanda ekupinda. ESL mumakabhati anodzorwa anofanirwa kusanganisa necabinet access control system-inoratidza zviratidzo zvekupinda zvisingabvumirwe, kutema matanda aionekwa pakuvhurwa kwegabhati yega yega, zvichigona kudzima chiratidziro panguva yekuedza kusingatenderwe. Imwe chitoro chemishonga chechipatara chakabatanidza ESL nehurongwa hwayo hwekutarisira zvinhu kuratidza chaihwo-nhamba yenguva inovandudzwa apo mishonga inopihwa, zvichibvisa kuwiriraniswa kwekuverenga nemaoko.

Refrigerated mishonga yekuchengetedzainosanganisa zvinodiwa muchitoro chemishonga pamwe nezvinotonhora-zvinonetsa tembiricha. Majekiseni, insulin, uye mamwe biologics anoda kuchengetedzwa pakati pe2-8 madhigirii . Yakafara-tembiricha ESL mapaneru anosungirwa. Zvimwe zvekuchengetedza muchitoro chemishonga zvinotonhora zvinoda kudonhedzwa tembiricha neESL-masensor akabatanidzwa anoratidza tembiricha iripo pamwe chete neruzivo rwemishonga-inopa ruzivo rwekuona kuti nzvimbo dzekuchengetera dzinoramba dziri mukati mezvakatarwa pasina kuda kuti vashandi vatarise michina yekuongorora yakasiyana.

Kuvhiya kwemuchipatara pharmacywedzera kuomarara kupfuura retail pharmacy. Ngoro dzemishonga, otomatiki ekuparadzira makabati, uye setiraiti pharmacy nzvimbo imwe neimwe inopa zvakasiyana ESL zvinodiwa. Ngoro-yakaiswa ESL inoda chivakwa chakasimba chinoramba chichidzokororwa; zvinoratidzwa zvinofanirwa kuramba zvichiverengeka pasi pemwenje wefluorescent wakajairika mumakoridho echipatara. Automated dispensing cabinet integration inoda maprotocol enhaurirano anofambirana necabinet management software-kazhinji masisitimu evaridzi ane mashoma echitatu{5}}anokwanisa kubatanidza bato.

Regulatory compliance zvinyorwainoda nzira dzekuongorora dzinotengeswa ESL masisitimu asingawanzo kupa. Kubvumidzwa kweJoint Commission kumafemesi echipatara kunoda magwaro ekunyora kwemishonga. ESL manejimendi masisitimu anofanirwa kurodha yega yega label update ine timestamp, mvumo yemushandisi, uye zvemukati shanduko yeruzivo. Imwe chipatara system's Joint Commission ongororo yakanyatso ongorora yavo ESL odhita nzira yekugona; muongorori akakumbira zvinyorwa zvema label echokwadi maitiro emwedzi gumi nemiviri yapfuura.

Electronics uye High-Value Retail: Chaiyo-Nguva Yemakwikwi Mitengo

Consumer electronics retail inoshanda nemutengo-pamusika uri pachena apo vatengi vanogara vachitarisa mitengo yevanokwikwidza pamafoni emafoni vakamira muchitoro. Ukoshi hweESL hunochinja kubva pakuchengetedza vashandi kuenda pakukwanisa kupindura-kukwanisa kuenzanisa kana kukunda mitengo yevakwikwidzi munguva chaiyo-pane kumirira kuvandudzwa kwemitengo yehusiku humwe.

Kubatanidzwa kwekutengesa mutengo wemakwikwiinobatanidza ESL masisitimu nemitengo yehungwaru masevhisi ayo anokwenya emakwikwi mawebhusaiti nguva dzose. Kana mukwikwidzi mukuru adonhedza mutengo wake panharembozha yemhando yepamusoro, sevhisi yehungwaru yemutengo inoona shanduko mukati memaminitsi, injini yemitengo inoongorora mitemo yemuganho, uye mitengo yakagadziridzwa inopararira kumasherufu emasherufu mukati me3-10 yechipiri network latency hwindo. Mumwe anotengesa zvemagetsi akadzikisa mutengo-zvinofambiswa nekufamba ne18% mushure mekushandisa nguva chaiyo yemakwikwi inoenderana kuburikidza nemidziyo yavo yeESL.

Ratidza ruzivo rwechigadzirwa chakapfumainokodzera kutenga kwepamusoro-soro kwakajairwa muzvitoro zvemagetsi. Mutengi ari kutenga Laptop ye$1,500 anoda zvekutaura{{3}prosesa, memory, storage, display resolution, hupenyu hwebhatiri. Mafomati hombe ESL (7.5" zvichikwira) anogonesa kuratidzwa kwaimboda makadhi akadhindwa. Vamwe vatengesi vezvemagetsi vanoisa misanganiswa yemagetsi nema e{7}}bepa remitengo uye zvirevo pamwe chete nemasikirini madiki eLCD emavhidhiyo ekushambadza{8}}zvichiwedzera simba retekinoroji yega yega.

Chishandiso chekunamira chiratidziroinoshandisa ESL kutyaira zvakanamatirwa kutengesa. Chiratidziro chinoratidza "inoshanda ne:" ruzivo runobatanidza zvigadzirwa zvekutanga kune zvinofambirana-kesi dzenhare, tambo dzemalaptop, mitambo yemakonsoni. Mitengo yekunamatira ine simba inogona kupa zvidzoreso zvemabundle zvinoratidzwa pane yekuwedzera ESL apo chigadzirwa chekutanga ESL chinoratidza mazinga anoda kufamba.

Kusanganisa-kubirazvinova zvinoenderana-nezvinhu zvinotengeswa zvakakosha. Masisitimu eESL anogona kubatanidza neelectronic article surveillance (EAS) uye RFID-based inventory tracking. Kana iyo EAS tag yabviswa pasina kudzima kwakaringana, iyo yakabatana ESL inogona kuratidza yambiro kana kuchinja chitarisiko. Mamwe mashandisirwo akadzama anonatsiridza nhamba munguva chaiyo-sezvo zvigadzirwa zvinobviswa kubva kune zvigadziriso, zvichiita kuti zvinhu zviziviswe ipapo-.

Chigadzirwa lifecycle mitengozvemagetsi zvinoteera maitiro anotarisika-kutanga mitengo yeprimum, makwikwi epakati-mitengo yehupenyu, kupera kwemvumo-kwe-yemitengo yehupenyu. ESL inogonesa otomatiki mararamiro emitengo mitemo inogadzirisa miganho zvichienderana nezera rechigadzirwa, mazinga ezvinyorwa, uye anotsiva ekutanga chigadzirwa masheti. Kana iPhone itsva yatangwa, ESL yechizvarwa chakapfuura inogadziridza nemitengo yemvumo zvinoenderana ne-yakatsanangurwa mitemo yemuganho, pasina kupindira nemaoko.

Demo unit managementmukutengesa zvemagetsi inoshandisa ESL akasiyana akagadzirirwa zvigadzirwa zvekuratidzira zvigadziriso. Aya mayuniti anowanzo batanidza nekuchengetedza tethers, masimba ekutonga masisitimu, uye makiosks anodyidzana. Iyo inoratidzira inogona kuratidza mitengo kana isina basa uye chinja kune maficha kana vatengi vachibatana nedemo chigadzirwa. Mamwe mashandisirwo anoshandisa ma sensors epedyo kuona kuvepo kwevatengi uye kugadzirisa zvakaratidzwa zvemukati zvinoenderana.

Industrial Parts uye MRO: Yakareba-Tail Inventory Challenges

Kugadzirisa, kugadzirisa, uye mashandiro (MRO) vanogovera uye vatengesi vezvikamu zveindasitiri vanogadzirisa maprofiles akasiyana zvakanyanya nekutengesa kwevatengi. Akajairika MRO distributor anotakura 100,000+ maSKU ane kureba-kugovera muswe{8}}20% yeSKUs inoburitsa 80% yemari apo 80% yeSKU inogara isinganyanye kufamba. Maitiro echinyakare ekunyora manyorero anotadza hupfumi kana mutengo wekugadzirisa label ukapfuura muganho wechigadzirwa wezvinhu zvinononoka kufamba.

High-SKU-huwandu hwehupfumichinja ESL ROI kuverenga. Mukutengesa grocery, ESL payback inouya zvakanyanya kubva pakuchengetedza vashandi pakuchinja kwemitengo. Mukugovera kweMRO, mubhadharo unobva mukuvandudzika kwezviyero uye kudzikiswa kwekusashanda pane zvishoma-sitoko. A fastener distributor akadzikisa nyora dzezvinhu-zvakaderedzwa ne31% mushure mekushandisa ESL-yakabatana yekuronda inventory yakaratidza kunonoka-kufamba kwestock yemitengo yekushambadza isati yasakara.

Technical specification displayzvinodiwa zvakafanana muchitoro chemishonga kupfuura grocery. Zvikamu zveindasitiri zvinoda kuratidzwa kwedimensional yakatarwa, mamakisi emidziyo, zvitupa, uye ruzivo rwekuenderana. ESL inotakura inogovera: chikamu chenhamba, mugadziri, dhayamita yekunze, dhayamita yekunze, hupamhi, chiyero chekumhanya, chiyero chemutoro, uye zvirevo zvinoshanda (ISO, ABEC, nezvimwewo). Ruzivo density inodiwa inosundira kune yakakura kuratidza uye nekungwarira typographic dhizaini.

Bin nzvimbo masisitimumuzvikamu zvekugovera kazhinji zvinoshandisa zvirongwa zvekodha zvenzvimbo zvakagadziridzwa kwemakumi emakore ekushanda. Kubatanidzwa kweESL kunofanirwa kugarisa mafomati enzvimbo yenhaka uku uchigonesa kutamira kune yakamisikidzwa nzvimbo yekukodha. Shanduko manejimendi inova yakakosha sekushandiswa kwehunyanzvi-vashandi vepadura vakajaira macode enzvimbo avakashandisa kwemakore makumi maviri vanoramba shanduko yefomati zvisinei nekugona kwesystem.

Mateshi-akatarisana nevatengipazvikamu zvekaunda zvinobatsira kubva mukubatanidza ESL. Kana mutengi achikumbira chikamu, vashandi vepakaunda vanobvunza sisitimu, uye ESL inoratidza panzvimbo yekuchengetera vhenekera kana kuratidza mirairo yepikicha. Vamwe vagovanisi vakaisa "kuunza kupikisa" mafambiro ebasa uko ESL inoratidzwa munzvimbo dzebhini inoratidza mirairo yekusarudza uye mazita evashandi veakaunta, ichigonesa kupindirana kwevatengi panguva imwe chete nekuzivikanwa kwepikicha.

Kitting uye kuita musanganoshandisa ESL kutungamira kusarudzwa kwechikamu kune-zvikamu zvakawanda. A hydraulic system kit inogona kusanganisira pombi, mota, mavharuvhu, mafittings, hose, uye fluid-chimwe nechimwe chinochengetwa munzvimbo dzakasiyana dzekuchengetera zvinhu. ESL inoratidza panzvimbo yega yega inoratidza kurongeka kwekiti, huwandu hunodiwa, uye mamiriro ekupedzisa. Kubatanidzwa nemagwaro egungano kunoratidza mirairo yebasa pamwe chete nekuzivikanwa kwechikamu.

Vendor-managed inventory (VMI)mapurogiramu anowedzera ESL yekugoverana kwekuonekwa. Kana vatengesi vachinge vabata mazinga munzvimbo dzevatengi, ESL inogona kuratidza mamiriro ekuzadzazve, mazuva ekutumira anouya, uye kuwanikwa kwemasheya. Kujeka uku kunotsigira-munguva-zvirongwa zvekugadzira zvinoda kuwanikwa kwezvikamu zvinovimbika pasina mari yakawandisa.

ESL vs. Alternative Display Technologies CHIKAMU CHITSVA

Sarudzo yeESL haisi yekungosarudza e-bepa repana rakanaka. Ndezvekusarudza tekinoroji yekuratidzira yakakodzera yekushandisa.E{{0}bepaanokwikwidzana neLCD sherufu inoratidza, zvikamu zvinoratidzwa, uye mavara echinyakare emapepa-chimwe nechimwe chine maitiro akasiyana, magadzirirwo emitengo, uye zvinotapira zvekushandisa. Kuongorora kunotevera kunopa hwaro hwehunyanzvi hwesarudzo dzekusarudza tekinoroji.

E{{0}Pepa (EPD) Electronic Shelf Labels

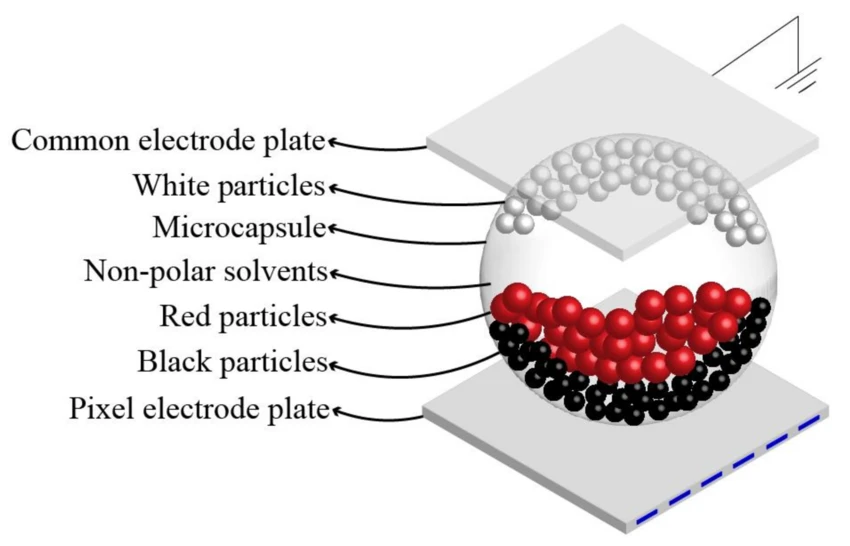

Operating musimboti: Electrophoretic particle migration mu microcapsule suspension pasi pekushandiswa kwemagetsi. Bistable-inochengetedza mufananidzo pasina simba.

Simba: Zero kushandiswa kwemagetsi kana kukamira (bistability yechokwadi), kuverengeka kwakanaka kwechiedza, maekona ekutarisisa (170 degrees +), bepa{2}sekutaridzika kunge rinopindirana nemhoteredzo dzezvitoro,-makore akawanda ehupenyu hwebhatiri kubva mumaseru emari, kuverengeka kwezuva kwekunze uye kupenya kwepamusoro{4}kupenya.

Kuganhurirwa: Slow refresh (300-2000ms for full update), ine ruvara rushoma (1-4 colours for commercial products, full-coloring varikubuda), ghosting artifics inoda nguva nenguva kuzara kufefeterwa, kutonhora kwetembiricha kuita degradation, high first unit cost than LCD dzimwe nzira.

Mutengo chimiro: Ratidza modules $ 3-15 zvichienderana nekukura uye kukwanisa kwemavara; yakakwana ESL zvikamu zvine controller, kutaurirana, imba, uye bhatiri $8-40; zvivakwa (magedhi, manejimendi software) inowedzera $ 0.50-2 per label kune yakajairika deployments.

Optimal applications: Mutengo-centric retail label ine zvigadziriso zvisingawanzoitiki (grocery, general merchamile, pharmacy), kunze kana kwakakwirira{{1}nzvimbo -yakajeka, kushandiswa kunoisa pamberi pekugara kwebhatiri pane kumhanya kwekuvandudza, maapplication anoda mapepa{3}sekunaka.

LCD Sherufu Inoratidza

Operating musimboti: Liquid crystal light modulation ine LED backlight. Inoda kuenderera kwesimba re backlight; kuratidza mamiriro asina kuchengetedzwa pasina simba.

Simba: Inokurumidza kufefetedza (60Hz yakajairwa, inokodzera vhidhiyo), kugona kweruvara kuzere nemamiriyoni emavara, kupenya kwepamusoro kuti vanhu vatarise-kukwezva kukwidziridzwa, kugona kuratidza vhidhiyo neanimation, tekinoroji yevakuru ine ecosystem yakakura.

Kuganhurirwa: Kuenderera mberi nekushandisa simba (3-15W yezvakajairwa pasherefu-kumucheto zviratidziro), kushata kwechiedza ambient kutaridzika munzvimbo inopenya yezvitoro), kuona makona (± 60 madhigirii chaiwo pamberi pekuchinja kwemavara), kutadza kwebacklight imodhi yekutadza, inoda simba remagetsi ane waya.

Mutengo chimiro: Ratidza modules $ 15-50 zvichienderana nehukuru; yakazara networked sherufu inoratidza $50-200; mari yekuisa inowanzopfuura mutengo wehardware nekuda kwesimba remagetsi zvinodiwa.

Optimal applications: Makwikwi ekusimudzira uko animation inokwezva vanhu, vhidhiyo{{0}zviratidziro zvinoshambadza, nguva{1}}mashambadziro mashoma, nharaunda dzine mwenje wakadzora (mall mukati, zvitoro zveairport), maapplication ane magetsi ekugadzira magetsi.

Chikamu LCD Inoratidza

Operating musimboti: Zvikamu zvakapfava zvekristaro zvemvura (senge Calculator kuratidza) inotungamirwa nevatyairi vechikamu vakazvitsaurira. Simba rakaderera zvikuru asi rinongogumira ku-defined character sets.

Simba: Yakanyanya kudhura mutengo ($ 0.50-2 pachiratidziro), yakanyanya kuderera simba rekushandisa (microamps for static display), yakafara tembiricha range, nyore kutyaira zvemagetsi, kuvimbika kwakaratidza kwemakumi emakore ekushandiswa.

Kuganhurirwa: Fixed segment mapatani inoganhura zvinotaridzwa (kazhinji manhamba uye mavara mashoma chete), hapana girafu kugona, mashoma saizi sarudzo, aesthetically date kutaridzika, yega yega hunhu inoda yakatsaurirwa segment pattern.

Mutengo chimiro: Ratidza modules pasi pe $ 1 muvhoriyamu; akazara mutengo kuratidza zvikamu $2-5; mari shoma yezvivakwa.

Optimal applications: Kuratidzwa kwemitengo chaiko uko kusingade kuchinjika, kudhura kwakanyanya-kushandiswa kusinganzwisisike, kukwirisa-zvishandiso zvinoisa pamberi pehupfumi hwemayuniti pane kugona, kushandiswa kwakaomarara kwenzvimbo uko zvigadzirwa zvemagetsi zvemhando yepamusoro zvinounza njodzi yekuvimbika.

Mapepa Labels (Chinyorwa)

Operating musimboti: Mapepa akadhindwa akaiswa mumapepa epurasitiki kana kunamatira zvakananga kumasherufu. Yakagadziridzwa nemaoko nevashandi vechitoro.

Simba: Mutengo wakaderera wetekinoroji (unonyatso zero yekuratidzira hardware), unlimited graphical flexibility, hapana zvemagetsi zvekutadza, hapana zvinodiwa zvezvivakwa, mafambiro akajairika evashandi vezvitoro.

Kuganhurirwa: Maitiro-yakakura yekuvandudza (15-masekonzi 30 pa label yevashandi vane ruzivo), kukanganisa-kukanganisa (inofungidzirwa 5-15% yenyaya dzechokwadi dzemitengo muzvitoro zvakajairika), zvishandiso uye mutengo wekudhinda, kugona kuita shanduko nekukurumidza kwemitengo, kuraswa kwemhoteredzo kubva mukuraswa kwemalebula.

Mutengo chimiro: Vabati vezita $0.10-0.50 imwe neimwe; mapepa ane mavara $0.01-0.05 chimwe nechimwe; Kuenderera mberi kwevashandi uye mari yemidziyo inowanzopfuura ESL lifecycle mutengo mukati memakore 2-4 kune yakakwirira-update-frequency application.

Optimal applications: Mashandisirwo ezvitoro madiki-diki apo mutengo wevashandi usingakodzeri (muridzi-zvitoro zvinoshandirwa), kuderera zvakanyanya kwemamiriro ekunze, zvenguva pfupi kana kuti pop-pamusoro pezvitoro zvisina kufanira, maapplication anoda mafomati asina kujairika asingawanikwe mune zvemagetsi sarudzo.

Technology Selection Framework

Sarudzo yesarudzo yekuratidzira tekinoroji kusarudzwa kunosanganisira akawanda zvinhu zvinofanirwa kuyerwa zvinoenderana nezvinodiwa zvekushandisa:

Gadziridza frequencyinokanganisa zvakanyanya kusarudzwa kwehunyanzvi. Zvikumbiro zvine zvisingasviki zvevhiki zvigadziriso hazviwanzo kupembedza ESL kudyara; mapepa emapepa anoramba ane mari. Zvishandiso zvine zvigadziriso zvezuva nezuva zvinosvika ESL breakeven mukati memakore 2-3. Zvishandiso zvine akawanda zuva nezuva zvigadziriso zvinonyanya kufarira ESL economics.

Content kuomainokanganisa tekinoroji sarudzo. Yakachena nhamba mutengo kuratidza inogona kushandisa chikamu LCD pamutengo wakaderera. Mitengo nemavara mashoma (mazita ezvigadzirwa, mutengo wemayuniti) zvinoenderana ne-bepa ESL. Yakapfuma mifananidzo yemukati kana vhidhiyo inoda LCD kunyangwe mutengo wemagetsi wakakwira.

Mamiriro ezvakatipoteredzaconstrain options. Chiedza chepamusoro che ambient (kunze, mahwindo, chiedza chezvitoro chinopenya) chinofarira e-pepa rinopenya. Nzvimbo dzemwenje dzakadzorwa dzinogona kushandisa LCD zvinobudirira. Kunyanya tembiricha (mufiriji, kunze) kunoda akakodzera mapaneru ratings zvisinei nesarudzo yetekinoroji.

Kuwanikwa kwemagetsi emagetsikazhinji inosarudza kugona. Nzvimbo dzisina simba rinowanikwa kana kuti simba rekumhanya dzingadhura zvakanyanya kuraira bhatiri-inofambiswa neESL. Nzvimbo dzine magetsi agara aripo (pamusoro-masherufu ekuvheneka maseketi) anogona kufunga nezve maLCD sarudzo.

Mari yese yekuongorora muridziinofanira kutarisa:

Huwandu uhu hunosiyana zvakanyanya zvichienderana nemitengo yevashandi vemunharaunda, kuvandudza ma frequency, uye chiyero chekuendesa. Kuverenga kunowanzofarira ESL yekuvandudza mafambiro ari pamusoro pe1-2 kaviri pasvondo mumisika yevashandi yakasimukira.

Hybrid Deployment Strategies

Vashoma vatengesi vanotumira tekinoroji yekuratidzira kune ese maapplication. Mazano eHybrid anofananidza tekinoroji kune zvinodiwa zvekushandisa mukati menzvimbo imwechete yekutengesa:

E{{0}bepa remutengo, LCD rekusimudzirainoshandisa ESL yemitengo yenguva dzose muchitoro ichiendesa maLCD skrini pamagumo evharo, nzvimbo dzekubuda, uye nzvimbo dzekushambadzira dzinopisa uko kugona kwevhidhiyo uye kupenya kwakanyanya kunokwezva vatengi. Iyi nzira inobata ESL inoshanda mabhenefiti ehuwandu hwemavara uku ichichengetedza kushambadza kuchinjika pazvinonyanya kukosha.

Segment LCD yemutengo, e-bepa reruzivoinoshandisa zviratidziro zvisingadhure zvemitengo yenhamba chaiyo tichishandisa e-mapepa maratidziro akakurisa kuti uwane ruzivo rwechigadzirwa apo kuomarara kwemukati kunoita kuti mutengo uripo. Iyi nzira inoderedza mutengo we-volume basic labels uku ichigonesa kuratidzwa kweruzivo rwakapfuma uko ukoshi hwevatengi hunoenderana nekudyara.

Tembiricha-zone tekinoroji inoenderanainoshandisa ESL yakajairwa munzvimbo dzezvitoro asi ichishandisa zvakafara-zvakasiyana-siyana zvetembiricha munzvimbo dzine firiji uye zvingangokwanisa kusarudza zvikamu zvakaomesesa muzvikamu zvefiriza uko zvakafara-temperature e{2}mapepa anoita zvishoma. Kusarudzwa kwetekinoroji kunotevera zvinodiwa kwezvakatipoteredza pane kushandisa madhizaini akafanana.

Chikero-zvivakwa zvakakodzerainogona kushandisa ESL ine network yakazara zvivakwa muzvitoro zvakakura-ichitumira zviratidziro zvezvikamu zvakamira kana mapepa emapepa muzvitoro zvidiki uko mari yezvivakwa isingakure. Sarudzo yetekinoroji inoona chiyero chekuendesa pamwe nezvinodiwa zvetekinoroji.

Emerging Technologies

Yepamusoro-Speed ​​EPD Tsvagiridzo

Kuratidzira kwerabhoritari kwakabudirira75Hz yekuvandudza mitengopa-mapepa-achisvika pedyo nenzvimbo yeLCD. Aya mademo kumisangano yeindasitiri anokatyamadza, asi kugadzirwa kwekugadzira kunoramba kuri kure.

Makiyi ekugonesa matekinoroji anosanganisiraliquid crystal additivesiyo dope electrophoretic fluid ine makomisheni inducing backflow mhedzisiro. Mapepa ekutsvagisa anoshuma 2.8 × kukurumidza kuvandudzwa uku panguva imwe chete ichidzikisa kutyaira voltage ne50%.Nyeredzi-mberi kwefirimu{1}malaminateskuderedza chidimbu chekufamba kure.Novel nanoparticle magadzirirwooptimize pamusoro pechaji maitiro uye kuderedza hydrodynamic radius. Uyekudzidza kwemichina{{0}yakagadziridzwa waveform kugadzirainochinjika nenguva-chaiyo kuratidza mamiriro nemamiriro ekunze.

Aya matekinoroji anoramba ari mubudiriro. Kutsanangura kugadzirwa kweESL zvigadzirwa zvinoenderana nemhedzisiro yerabhoritari hazvikurudzirwe.

Ruvara E{{0}Paper Evolution

E Ink Gallery 3tekinoroji inoratidza kuti EPD yemuvara iri kuenda kupi. Dema/chena refresh yadonha kusvika350ms, kubva ku2000ms muzvizvarwa zvakapfuura. Fast color mode hits500ms. Standard color mode inomhanya750-1000ms. Yakanakisa mhando yemhando yemhando ichiri kuda1500ms.

Rudzi rweEPD rwuri kushanduka kubva "kusinga shandiswe" kuenda ku "chinogoneka" kune maapplication akasarudzwa. Tarisira kuenderera mberi kwekuvandudza, asi monochrome inochengetedza kumhanya uye simba mabhenefiti nekusingaperi nekuda kweiyo yakakosha particle fizikisi misiyano.

Performance Specifications yeSystem Dhizaini

Minimum Viable Specifications

Kune general retail shelf label, nhamba idzi dzinomiririra pasi:

Nguva yekuzorodzainofanirwa kurova 2000ms kana zvirinani kune yepasirese modhi, 500ms kana zvirinani zvishoma.Kusiyanisa ratioinoda kudarika 8: 1.Resolutioninofanira kusvika kanenge 100 DPI.Kuona konainofanira kureba 170 dhigirii kana kupfuura.Kushanda tembiricha rangeinofanira kuvhara 0 kusvika ku40 degree.Hupenyu hwebhatiriinofanira kudarika makore mashanu pazvigadziriso zviviri pazuva.

Enhanced Specifications

Zvemaapplication arikuda-anogara achigadziridzwa, chengetedzo inotonhora, zvekushambadzira-zvinodzokororwa:

Nguva yekuzorodzainofanira kurova 1000ms yepasi rose, 300ms pachidimbu.Kusiyanisa ratioinofanira kudarika 12:1.Resolutioninofanira kusvika 120 DPI kana kupfuura.Kugona kwemavara(3-4 ruvara) inova yakakosha.Kushanda tembiricha rangeinofanira kureba -25 dhigirii kusvika 50 dhigirii .Hupenyu hwebhatiriinofanira kudarika makore matatu pa4 inogadziridza pazuva.

Specification Validation

Zvido zvevatengesi zvinofanirwa kusimbiswa pasi pemamiriro ezvinhu chaiwo. Izvi hazvisi zvekusarudza-pakasiyana-siyana pakati pezvinorehwa nedhetabheti nemafambisirwo akaitwa awanikwa.

Yedza nguva yekuzorodza pane hushoma uye yakanyanya tembiricha yekushandisa, kwete tembiricha yekamuri chete. Simbisa musiyano wechiyero pasi pemamiriro chaiwo ekuvhenekesa kwechitoro, kwete kuvhenekera murabhoritari. Simbisa hupenyu hwebhatiri uchishandisa mafambisirwo azvinoitwa uye mhando yezvinyorwa-zvinofungidzirwa nevatengesi zvinowanzoitika-zvakanyanya kunaka. Verify system-level update latency ine target label count kuti uone zvikero zvemavakirwo etiweki zvakakodzera.

Kufananidza Tekinoroji kune Kushandisa

Electronic sherufu label tekinoroji sarudzo inozopedzisira yadzika pakufananidza kugona kune zvinodiwa. Fizikisi yezviratidziro zve electrophoretic inogadza miganhu yakasimba-yerefesheni, kusanzwa kwetembiricha, ghosting behaviour-yokuti hapana huwandu hwekugadzirisa huchapfuura. Kunzwisisa miganhu iyi kunogonesa realistic system dhizaini uye yakakodzera tekinoroji sarudzo.

Pakutumirwa kunoenderana nezvisungo-zviri pakati nepakati, kushanda kwetembiricha, mutengo-zvakanangana-ESL inopa ukoshi hunogombedzera kuburikidza nekubviswa kwevashandi, kuvandudzwa kwemitengo, uye kushanduka kwemashandiro. Kumaapplications ari kupesana nezvinorambidzwa ESL-yepamusoro-kudzokorodza nguva zhinji, tembiricha yakanyanyisa, media content-alternative technologies kana mahybrid approaches angaratidza kuti akakodzera.

Tekinoroji inoenderera mberi. Refresh rates inovandudza nekuwedzera. Kugona kwemavara kunowedzera. Tembiricha dzinowedzera. Asi iyo yakakosha fizikisi inoramba iripo. Kubudirira kweESL kutumira kunoda kushanda mukati mezvipingamupinyi izvi, kwete kunyepedzera kuti havapo.
