Kukundikana uku kune maitiro, uye mazhinji anoongororwa mumaminitsi makumi matatu kana pasi. Iri gwara rakarongedzerwa kutenderedza kuti kugadzirisa kunoshanda sei: kutanga kubva pane zvaunogona kuona pachiratidziri, wozoshanda uchidzokera kune chikonzero. Kana uchichengetedzazvekutengesa LCD kuratidza skrinimukutengesa, mhanyisa mapaneru mumakiosks eruzhinji, kana debug yakamisikidzwa hardware panguva yekusimudzira, maitiro ekuongorora akafanana.
Quick Symptom Reference
Shandisa tafura iyi sefa yako yekutanga. Zvikonzero zvakawanda zvinogona kuburitsa chiratidzo chimwe chete, saka zvibate senzira yekutanga, kwete mhinduro yekupedzisira.
| Symptom | Zvingangove Chikonzero | Chiito Chekutanga |
|---|---|---|
| Yakazara rima skrini, hapana backlight | Kukundikana kwesimba kana fuse inoputika | Eresa voltage yekupinda pamapini emodule |
| Sikirini yakavhurwa asi yakadzikira | Backlight degradation kana kutadza LED array | Edza backlight redunhu wakazvimirira |
| Mufananidzo usina kusimba unongoonekwa netochi chete | Kutadza kwelightlight - pachayo inoshanda | Ongorora LED mitsetse uye mutyairi wedunhu |
| Kupenya kana kupenya kuratidza | Yakasununguka ribhoni tambo kana isina kugadzikana yemagetsi voltage | Dzorera zvibatanidza zvose; tarisa kugovera ripple |
| Mitsetse yakatwasuka kana yakatwasuka pascreen | Yakatsemuka substrate kana mutyairi IC kukanganisa | Visual inspection; chinjanisa driver board |
| Kukwenya kana kushaikwa mavara | Protocol mismatch kana firmware bug | Simbisa zvigadziriso zvekutaurirana uchipesana nedhetateti |
| White screen isina zvirimo | Initialization kutadza kana kurasikirwa kwechiratidzo | Tarisa protocol config; simbisa reset nguva |
| Chipoko chinoramba chiripo kana kutsva-mukati | Mufananidzo wakamira pachembere yakarebesa | Power cycle; mhanyisa pixel- refresh test pattern |
| Bata kuisa kwete kunyoresa | Yakakuvadzwa yekubata tambo kana yakashatiswa firmware | Tarisa ribhoni tambo; zvakare-flash touch controller |
| Random reset kana simba bhasikoro | Voltage spike kana kusakwana ikozvino kugona | Kuyera kupa ne oscilloscope; wedzera surge protection |
Chii Chinonyanya Kukonzera LCD Module Kukundikana?
Backlight Degradation
Chiedza chekumashure ndicho chinonyanya kutadza kushanda-chikamu chimwe chete mumaLCD module. Ma LED anodzima zvishoma nezvishoma pamusoro pehupenyu hwavo hwekushanda - vagadziri vanokodzera zvigadzirwa vachipikisaJEDEC semiconductor kuvimbika bvunzo zviyero, uye nguva yeupenyu yakatemerwa inosiyana zvakanyanya pakati pemagiredhi emutengi{{0}nemaindasitiri-. Gara uchitarisa kune yako chaiyo module dhairekitori yehupenyu hwayo hwakayerwa sevhisi pasi pemamiriro ako ekushanda, kwete generic indasitiri nhamba.
Chiratidziro chine backlight yakaderedzwa ichiri kupfuura macheki emagetsi. Iyo pani iri kushanda - haikwanise kuburitsa mufananidzo unoverengeka muchiedza chakajairika. Kana iyo skrini ichiita seyakagamuchirwa mukamuri isina kujeka asi ichiita kunge isingaonekwe pasi pemwenje wakajeka wehofisi kana kunze, iyo backlight ndiyo yekutanga kuyedza.
⚠️ Kukanganisa kwakajairika:kuripa chiedza chekumashure chinodzima nekusundidzira kupenya kusvika pakakwirira. Izvi zvinomhanyisa kupfeka kweLED uye zvinopfupisa hupenyu hunobatsira hwasara hwe-chikamu chinodzikisira. Kusarudza hardware ine kupenya kwakakodzera headroom kubva pakutanga kunodzivirira dambudziko zvachose - ona chinosiyanisazvekutengesa-giredhi LCD moduleskubva kune-magiredhi edzimwe nzira dzevatengi.
Connector uye Cable Matambudziko
Tambo dzeRibhoni, zvibatanidza zvembizi, uye majoini ekutengesa zvinodzikisira pasi pekuzunguzika, kuchovha bhasikoro, uye kudzokororwa kuchinjika. Iyo yekukundikana modhi inenge inogara ichipindirana: kubhururuka pane mamwe maitiro, kudonhedza zvikamu zvekuratidzira pasi pekudengenyeka, kana skrini inoshanda pakutanga asi inotadza pakushanda tembiricha. Kudzorerazve chinongedzo chese usati wahodha zvikamu zvinogadzirisa chikamu chakakosha chezvichemo zvemumunda pa zero mutengo.
Environmental Stress
Kutonhora kunononoka mhinduro yekristaro yemvura; kupisa kunowedzera polarizer kukwegura uye kunamatira delamination; mwando unoparadza maelectrodes kubva mukati, zvichigadzira zvikamu zvisipo zvekuratidza izvo zvinowedzera kuipa zvishoma nezvishoma mumavhiki. Gara uchitsanangura nezve-zvakanyanya mamiriro ezvinhu, kwete avhareji. Zvekushandisa munzvimbo dzinodiwa,yakasanganiswa LCD inoratidzira mhinduro ine inofananidzwa yezvakatipoteredza zviyerovakakodzera kuongororwa vasati vatumirwa, kwete mushure mekukundikana kwemunda.
⚠️ Kukanganisa kwakajairika:kuyedza chiratidziro chiri mulab mamiriro uye tichifungidzira kuti ichaita zvakafanana kunze, muimba inotonhorera, kana padhuze nekunyorova - pasina kuona kuti module yakayerwa IP kirasi uye tembiricha yemhando inoenderana nenzvimbo yekutumirwa.
Matambudziko Ekupa Masimba uye Kukanganisa Kwemutyairi
Voltage spikes inokonzera ipapo mutyairi IC kukuvara. Supply ripple - AC noise paDC njanji - inokonzeresa kukuvadzwa kusinganzwisisike, kunowedzera: kurongekazve, ruzha rwemufananidzo, uye kupfupisa hupenyu hweLED. Tarisa dhatabheti yemodule yako kune yakanyanya kubvumidzwa ripple voltage; hapana chikumbaridzo chepasirese chinoshanda pamarudzi ese emapanera.
Firmware bugs uye protocol mismatches iboka rakasiyana rinotevedzera kutadza kwehardware zvinogutsa. Chidzitiro chena kana kudhirowa kuburitsa mushure mekuchinja kwebhodhi kana software yekuvandudza kazhinji iko kukanganisa kwekugadzirisa, kwete pani yakaputsika. Musiyano uyu unokosha riinikuenzanisa LCD uye LED bar screen mafomu- matekinoroji akasiyana ane maitiro eprotocol akasiyana uye siginicha yezvikanganiso.
Nhanhatu-Nhanho Yekuongorora Matanho
Shanda kuburikidza neizvi zvakarongeka. Mira kana uchinge waona kukanganisa - zvisina kufanira swaps kutambisa nguva uye zivisa zvitsva zvakasiyana.
Danho 1 - Ongororo yekuona simba risati ravhurwa-.Tarisa makatsemuka, condensation kuseri kwepanera, kupisa mavanga paPCB, uye akadzingwa kana kinked ribhoni tambo. Kana ukawana kukuvara kwemuviri, usashandise simba. Kubatanidza kupfupika kunogona kukonzera kukuvadzwa kunodhura zvakanyanya kupfuura kukanganisa kwepakutanga.
Danho 2 - Wona kuti magetsi ekupinda.Shandisa multimeter pamapini emagetsi emodule. Mavheti akayereswa eTFT mapaneru 3.3V, 5V, kana 12V - tarisa dhetabheti rako. Kuverenga kunodarika 5% kunze kunodiwa kuferefeta. Pakukanganisa kuri pakati nepakati, wedzera oscilloscope kuti utarise ripple rekupa uchipesana nezvinotenderwa nedatabase.
Danho 3 - Rongedza mwenje wekumashure.Mukamuri isina kujeka, vhenekera tochi panzvimbo yepanera pakona. Kana iwe uchigona kugadzira mufananidzo wakaneta, iyo pani inoshanda uye chete backlight yatadza. Muedzo mumwe chete uyu unobvisa hafu yemuti wekuongorora mukati memasekondi gumi - uye unoshanda zvakaenzana pabha-format LCD displayssepamwero werectangular panels.
Danho 4 - Chinjana tambo nemabhodhi nenzira.Rodha -yakanaka bvunzo patani. Tsiva tambo yeribhoni nechikamu chekushanda chakasimbiswa. Kana kukanganisa kuchitevera tambo, tambo ndiyo dambudziko. Kana ikagara nebhodhi, bhodhi rinotevera. Tsiva chikamu chinodhura, chinosvikika kutanga.
Danho 5 - Tarisa nzira yekutaurirana.Chidzitiro chena kana garbled kubuda mushure mekuchinjana kwebhodhi kunenge kuri kukanganisa kwekugadzirisa. Tarisa baud mwero (UART), SPI modhi (CPOL/CPHA), kana I2C kero uchipesana nedhetabheti. Iyi nhanho inobata chikamu chisina kuenzana chekukanganisa mukatikiosk kuratidza nharaundauko ma module anotsiviwa mumunda, kazhinji kubva kune asina kukwana zvinyorwa.
Danho 6 - Dzokorora mamiriro emunda pabhenji.Chiratidziro chinoshanda murabhoritari asi chinotadza kutumirwa chingangogara chine chinopisa kana vibration mudzi chikonzero. Chibatanidza chiri mumucheto pa 22 dhigirii chinogona kuvhura zvachose pa 55 degree. Isa kupisa kunodzorwa panguva yekuyedzwa kwebhenji - chikanganiso chinoonekwa pamusoro peimwe tembiricha inoratidza kuwedzera kwemafuta semashini zvakananga.
Kugadzirisa kana Kutsiva? A Decision Framework
Kugadzirisa kune musoro kanakukanganisa kunowanikwa kune imwe chete inogadziriswa chikamu - tambo, backlight array, firmware update - module chikamu chegadziriro apo kutsvaga chinotsiviwa kunosanganisira kuderera kukuru kana kugadzirisazve, uye mari yekugadzirisa inonyatsoderera pane imwe itsva.
Kutsiviwa kunowedzera kunzwisisika kanazviratidzo zvakawanda zvinoonekwa panguva imwe chete. Dim backlight, yekubatanidza kupfeka, uye ghosting yemufananidzo inoonekwa pamwechete chiratidzo chakavimbika chekupera kwehupenyu hwesevhisi, kwete imwe mhosva inogadziriswa. Kutsiviwa kunonzwisisikawo kana module yazvino ichipa zvinotsanangurwa zviri nani - kupenya kwepamusoro, tembiricha yekushanda yakafara, kudzivirira kupinza kuri nani - kunoderedza mutoro wekutarisira ramangwana.
Usati wazvipira kune chero nzira, shanda kuburikidza neiyi mibvunzo mishanu:
- Uku ndiko kutadza kwechikwata chekutanga here, kana kuti chakambotadza?
- Mhosva yacho inongogumira kuchinhu chimwe chete, chinotsiviwa here?
- Mari yese yekugadzirisa - maparts, labour, and downtime - inogara zvakajeka pasi pemutengo wekutsiva?
- Iyo yakagadziridzwa unit ichazogara kuburikidza neiyo system yasara sevhisi inodiwa?
- Ikozvino inotsiva inopa zvinorehwa zvirinani zvekushandisa uku?
Kana mhinduro nhatu kana kupfuura dzichifarira kutsiva, ndiyo nzira yakajeka. Bhurawuza zvizereproduct rangekanataura nenyanzvinezvekutsvaga. Zvekutengesa uye zvikwangwani,tsika LCD zvigadziriso zvekutengesa signagekazhinji zvinounza zvirinani-zvehupfumi zvenguva refu pane kungofanana-ne-sekuchinjana.
Preventive Maintenance
- Kudzora kwezvakatipoteredza:Isa mukati mematembiricha akayerwa nehunyoro, uchishandisa-mamiriro ezvinhu akaipa kwazvo pakuronga. Munzvimbo dzine mwando wepamusoro-, zvivharo zvakavharwa zvine ma IP akaongororwa chinhu chinodiwa, kwete kungwarira.
- Power management:Shandisa zvinodzorwa zvekushandisa zvine hardware surge dziviriro. Dzivisa kumhanya malights ekumashure nguva dzose pakupenya kwakanyanya - adaptive kupenya kutonga kunoderedza kupfekedzwa kweLED pasina maitiro anooneka pausability.
- Kuongororwa kwakarongwa:Mwedzi wega wega - tarisa zvigaro zvekubatanidza uye tsvaga kudzikamisa. Quarterly - mhanyisa diagnostic test pattern uye simbisa magetsi ekupa ari pasi pemutoro. Pagore - tarisa kugovera ripple uye ongorora optical layers kuti delamination kana polarizer kuchembera.

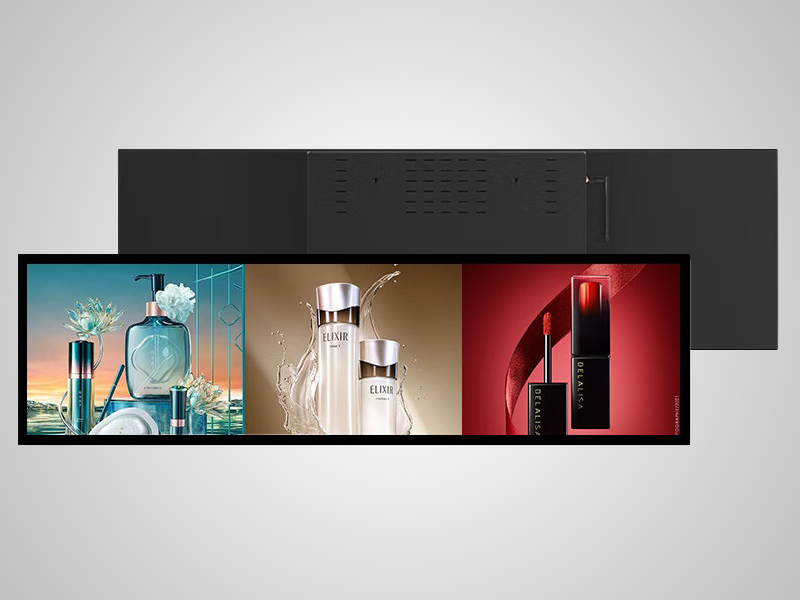

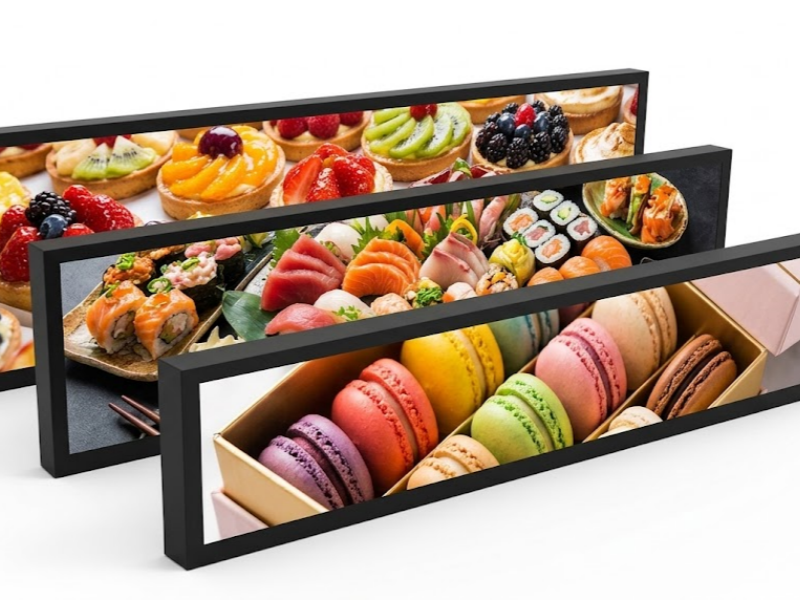

Forself{{0}sevhisi nzvimbokutumirwa kunoenderera mberi-munzvimbo dzine vanhu vakawanda, cheki yemwedzi nemwedzi ndiyo inonyanya kukosha-basa rekugadzirisa kamwe chete.Yakatambanudzwa LCD skrini inoshandiswa munzvimbo dzezvitoro zvikurukutarisana nekuratidzwa kwehunyoro uye makemikari ekuchenesa ayo akajairwa ekugadzirisa zvirongwa anogona kusagadzirisa zvizere.
Mibvunzo Inowanzo bvunzwa
LCD yangu inoratidza chidzitiro chichena - pane chatyoka here?
Kwete hazvo. Chidzitiro chena kazhinji kutaurirana kana kutadza kwekutanga pane kukuvadzwa kwemuviri. Nyatsoongorora magadzirirwo eprotocol - chiyero chebaud, SPI modhi, kana I2C kero - uchienzanisa nedatabase remodule. Izvi zvinonyanya kukosha mushure mekuvandudza firmware kana bhodhi swap uko marongero anogona kunge asina kutamiswa nemazvo.
Ndinoziva sei kana backlight kana LCD panel yatadza?
Ratidza tochi pachiratidziro pakona mukamuri isina kujeka. Kana iwe uchigona kuona mufananidzo usina kusimba, pani iri kuburitsa zvinobuda nemazvo uye chete backlight yatadza. Hapana mufananidzo zvachose pasi petochi zvinoreva kuti kukanganisa kuri mupaneru, bhodhi rekutyaira, kana nzira yechiratidzo pakati pavo.
Chiratidziro chinopenya chinogona kugadziriswa pasina kutsiva module?
Kazhinji kazhinji, hungu. Flickering inonyanya kukonzerwa netambo yeribhoni yakasununguka, yejoini ye solder, kana kuwandisa kwekupa ripple. Kuisa patsva majoinisi uye kuona kugadzikana kwemagetsi ekupa pasi pemutoro kunogadzirisa zvichemo zvakawanda zvisati zvave kudiwa kutsiva.
Zvakachengeteka here kuisa simba pane chiratidziro chave chakafumurwa nehunyoro?
Kwete. Bvumira module kuti iome zvizere munzvimbo ine mwando-yakaderera usati waisa magetsi. Kuisa simba pachiratidziro chemvura kune njodzi yekuora kwe electrode uye mapfupi maseketi anogona kukuvadza zvachose mapaneru.
Sei kuratidza kwangu kuchishanda pabhenji asi kukundikana mumunda?
Nharaunda yepakati-kutadza kutadza chete kunowanzokonzerwa nekuwedzera kwekushisa patembiricha yekushanda, kuzunguzika{1}}kuchidzirwa kwekotanidza intermittency, kana condensation panguva yekutanga. Dzokorora nzvimbo chaiyo yekutumirwa - tembiricha, kutenheka, mwando - panguva yekuedza bhenji. Kuti uwane nhungamiro pakusarudza Hardware inobata mamiriro anodiwa zvakanyanya,Iyi mionero ye-yemhando yepamusoro yeLCD kuratidza sarudzoinovhara misiyano yezvirevo inonyanya kukosha.
Mhedziso
LCD module kutadza kuverengeka kana iwe waziva zvekutarisa. Panera rakasviba, sikirini inopenya, yakabuda marara - mepu yega yega kurondedzero inodzoreka yezvingangokonzeresa, uye maitiro ekuongorora akarongeka anowana kukanganisa chaiko nekukurumidza pane kutsiva zvikamu zvisina tsarukano. Iyo nzira zvakare inokuudza zvakajeka kana kugadzirisa kwaita nzira yayo uye kutsiva ndiyo mhinduro chaiyo.
Kana kutadza kwazvino kwakaisa Hardware nyowani pane yako ajenda, ongororanzira yemazuva ano yekutengesa LCD skrini inofananidzwa neyechinyakare kuratidza sarudzo, kanatumira mubvunzokukurukura zvaunoda zvekushandisa.
